Density 6.6g/cm3 Sinter shock Piston produced by automatic grooveing machine
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | WEIWO |
| 인증 | ISO9001:2008 |
| 모델 번호 | 주문 제작된 피스톤 |
| 최소 주문 수량 | 500 PC |
| 가격 | negotiation |
| 포장 세부 사항 | 그리고 나서 표준 수출 패키지와 통에서, 하나씩 플라스틱 박스에서 싸여집니다 |
| 배달 시간 | 20 세공과 새로운 샘플을 위해 일로 일합니다 |
| 지불 조건 | 전신환, 웨스턴 유니온, L/C (신용장) |
| 공급 능력 | 달 당 50,000pcs |
제품 상세 정보
| 상품 이름 | 피스톤 | 재료 | 알루미늄 / 아연 합금 |
|---|---|---|---|
| 언론 | 150T | 신청 | 완충기 |
| 형 시간 | 25 일 | 도금 | 어떤 스팀 |
| 정미중량 | 20.2g | 사이즈 | 30 밀리미터 |
| 하이 라이트 | powder metallurgy components,PM parts |
||
제품 설명
Density 6.6g/cm3 Sinter shock Piston produced by automatic grooveing machine
Advantage of powder metallurgy parts:
(1)can produce refractory metals and other cellular material
(2)can improve material usage without machining
(3)can get the material with high purity
(4)Unique chemical composition and machanical physical properties
Specifications:
|
Product Name |
Powder Metal Part, Piston for Shock Absorber
|
|
Raw Material
|
MPIF FC-0205
|
|
Processing for sinter parts |
Powder blending—Forming—Sintering—Sizing—After treatment—Steam treatment—Oil impregnant
|
|
Processing for banding |
powder blending—PTFE cylinder compression—Sintering—PTFE disc production—repressing—heat pressing—molding—deburring—inspection—packing
|
Description:
Good quality sintered metal piston used together with PTFE straps
Our company produces different kinds of powder metallurgy products. These powder metallurgy products
including sintered rod guides, sinter pistons & sinter foot valves, the parts are delivered in a fully finished
condition and ready to be assembled along with other shock absorber components.
Sintered parts
Size: D30XD8X15
|
properties |
data
|
|
Crushing strength (KN) |
≥7
|
|
Density (g/cm3) |
≥6.4
|
|
Hardness (HRB) |
60-80
|
Material actual component
Fe: 97.58%
C: 0.62%
Cu: 1.7%
Others: 0.1%
Material: MPIF FC-0205 or FC-0208 from GKN
No steam treatment
Die tooling design and making in house
Ultrasonic clearing and auto de-burring
Packaging
1. Soft foam to prevent the surface being scratched in one small cardboard box, several small boxes in
one larger hard cardboard with fills to avoid a slope, besides hard cardboard is easy to load and transport
2. We can also arrange packaging according to your special requirements or discuss
Shipping
There are three ways to be chosen, as follows:
1. International Express: UPS, TNT, DHC
2. Port transportation: all ports
3. We delivery products according to customer’s requirements and paid by buyer after the destination confirmation
4. Take insurance for the goods according to contract
Applications:
The products are widely used in household electrical appliance, automobile, motorcycle,
electrical tools,office machinery, textile machinery, food machinery, lock, etc. e.g. washing
machine, fan, stirring mill, sterilizer,electric hair dryer, coffee machine, soya-bean milk machine,
DC- motor, mini motor, hand drier, percussion drilling, drag saw, pruner, grass cutter, snow
remover, etc.
Competitive Advantage:
1. Well experienced OEM manufacturer
2. Six years in the powder metallurgy industry
3. Professional technology service
4. Familiar with automobile industry requirement.

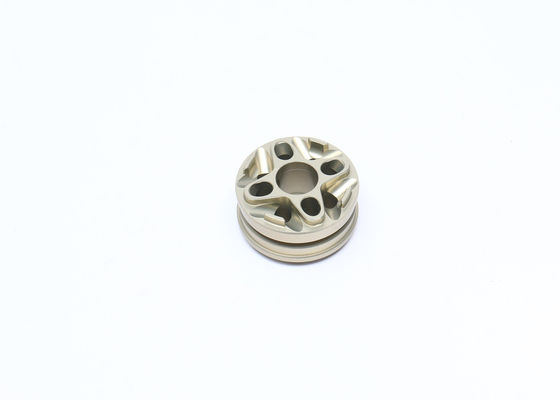

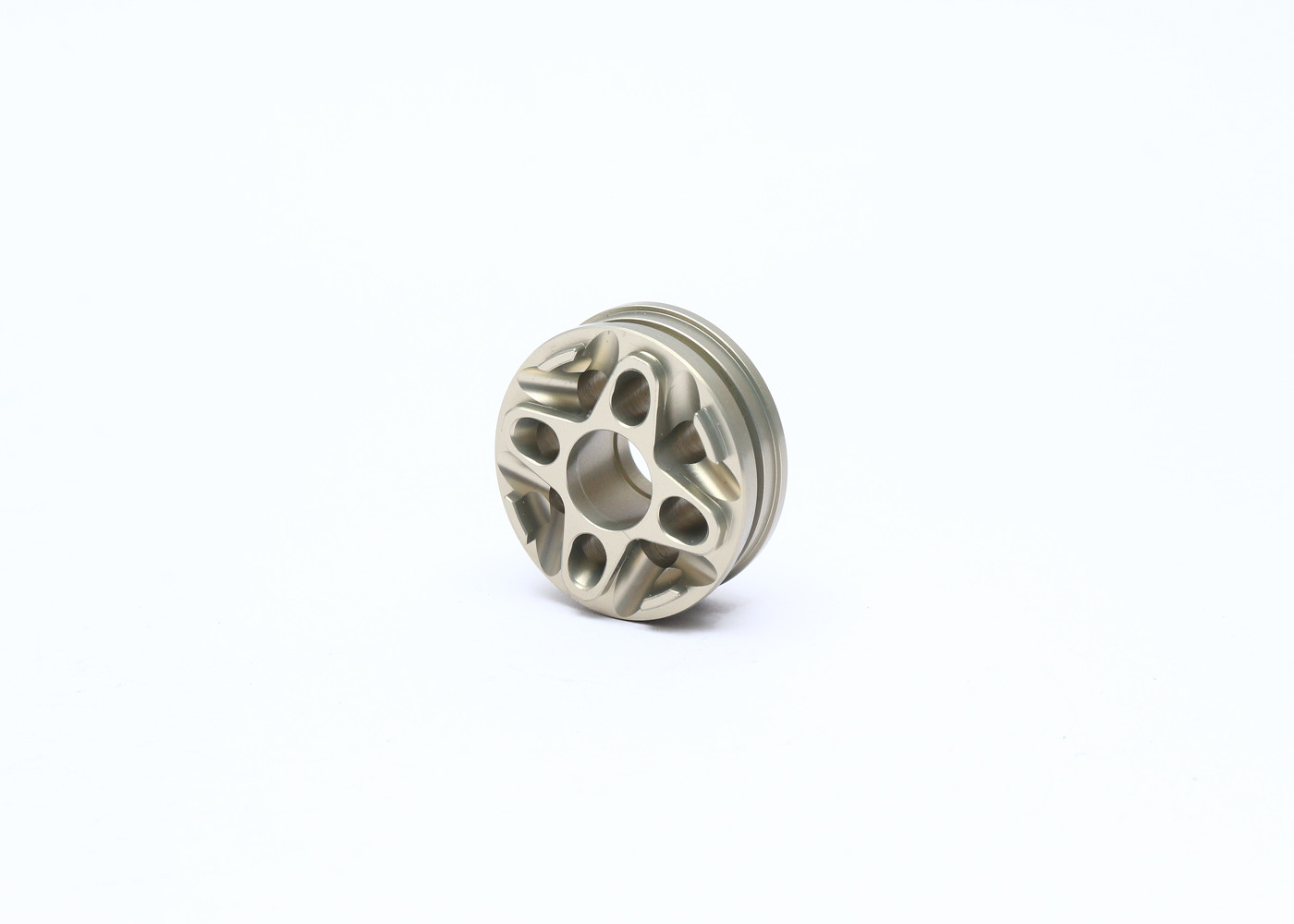

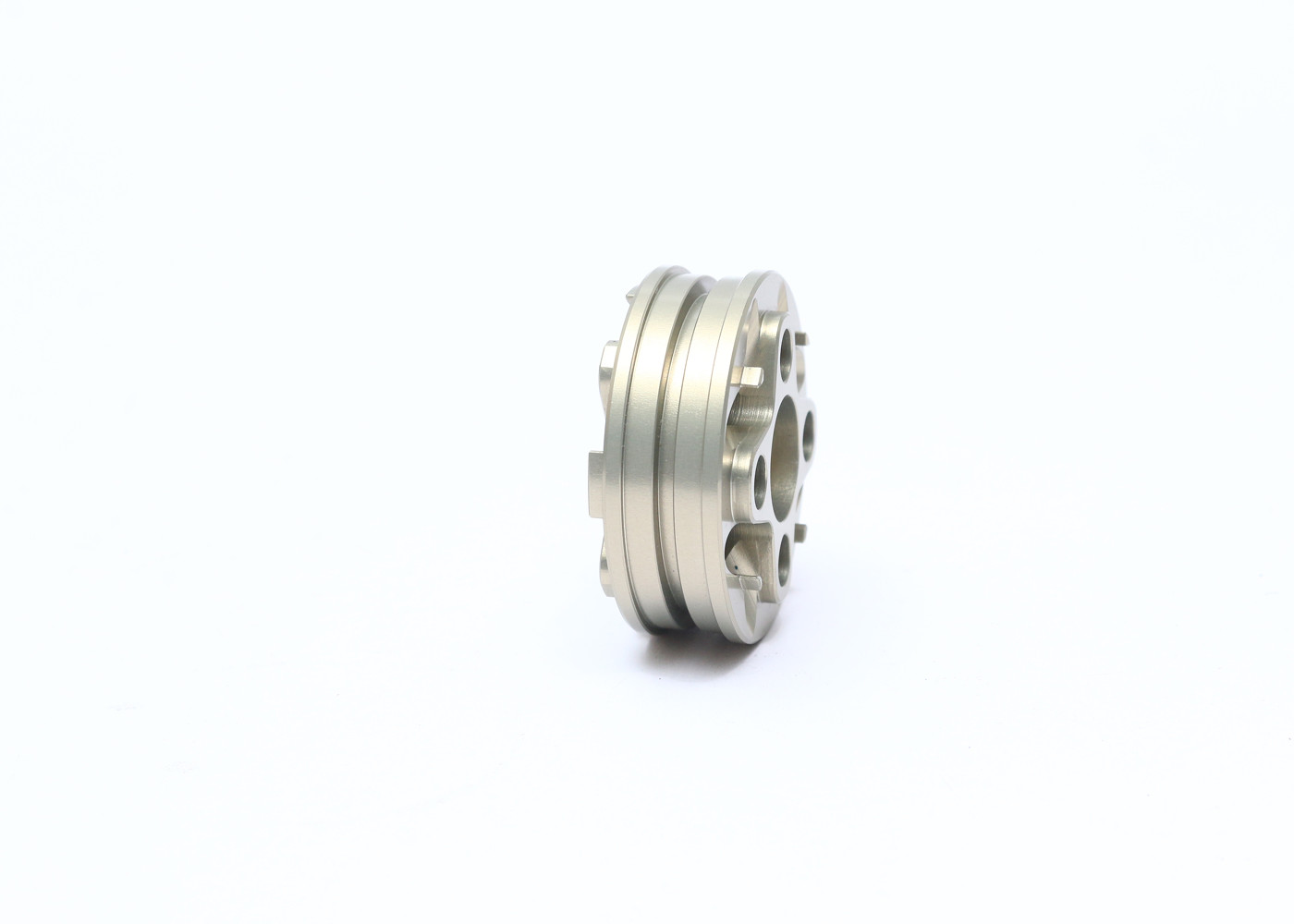

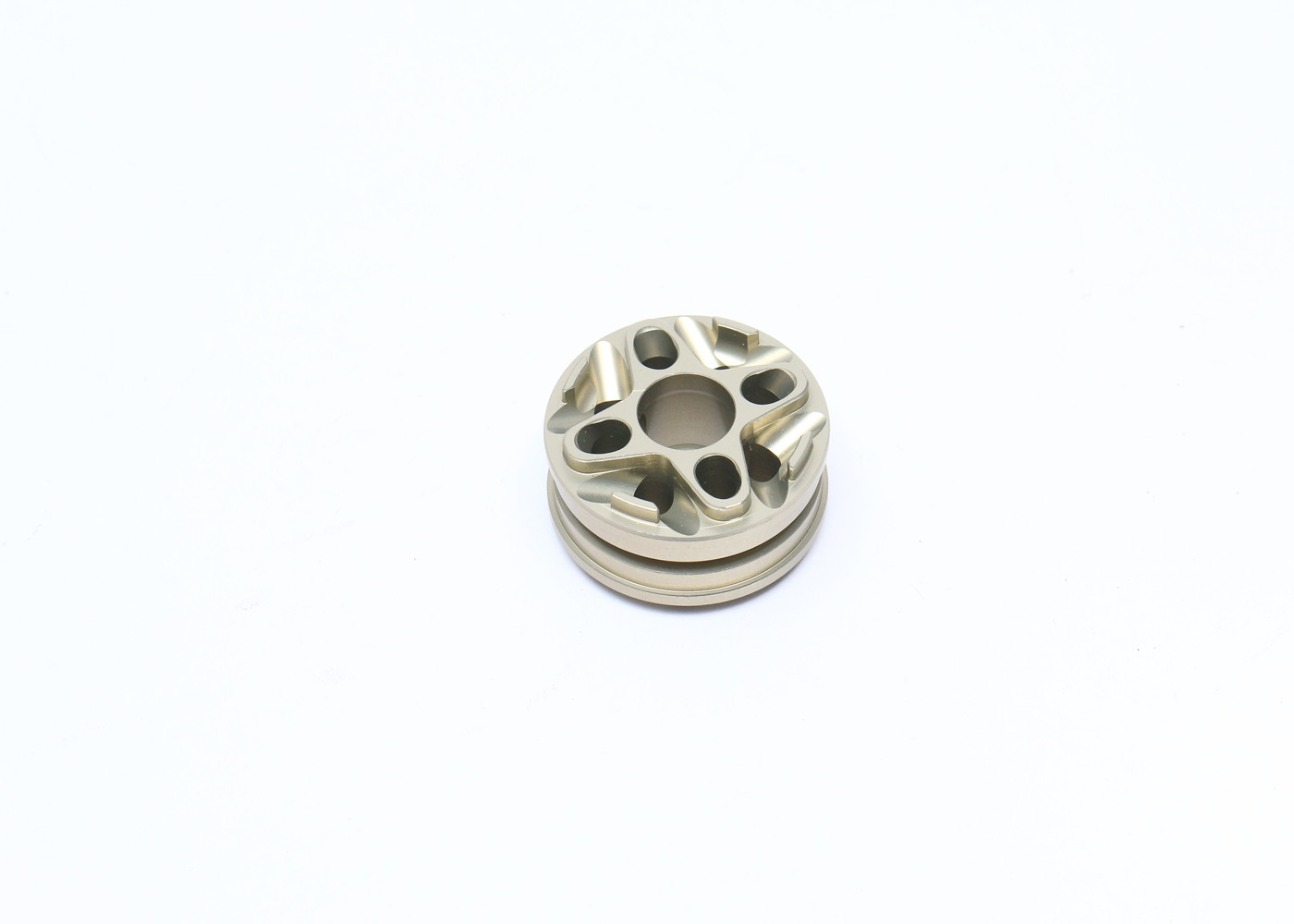

Picture show:
 |
