내크리프성 PTFE 플라스틱과 고무 부분 높은 의학적 장점
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | WEIWO |
| 인증 | ISO9001:2008 |
| 모델 번호 | PTFE-J0718 |
| 최소 주문 수량 | 1,212 개 |
| 가격 | negotiation |
| 포장 세부 사항 | 그리고 나서 표준 수출 패키지와 통에서, 하나씩 플라스틱 박스에서 싸여집니다 |
| 배달 시간 | 10 새로운 샘플을 위해 일로 일합니다 |
| 지불 조건 | 전신환, 웨스턴 유니온, L/C (신용장) |
| 공급 능력 | 일 당 11,000 PC |
제품 상세 정보
| 충전물 | 흑연 또는 탄소 | 주요 소재 | PTFE |
|---|---|---|---|
| 밀도 | 2.13-2.25g/cm3 | 신청 | 산업 |
| 절차 | CNC 전환 | 절연성 불변의 것 | 1.95-2.10 |
| 정합 스크랩 비율 | 1%-2% | 밖으로 직경 | 17.5 밀리미터 |
| 하이 라이트 | Creep Resistance Plastic And Rubber Parts,2.25g/cm3 Plastic And Rubber Parts,17.5mm Plastic And Rubber Parts |
||
제품 설명
Customized Filled PTFE products high mechanical strength creep resistance
Specifications:
|
Material |
PTFE |
|
Color |
White, black or any other |
|
Working temperature |
-180~260 degree |
|
Processing |
Machine or by mold |
|
Sizes |
As requirement |
We can produce any special articles, only need to send us your size and drawing, we can produce samples for you.
Related products:
valve pipe seal
piston cup
PTFE retaining ring
colored PTFE
PTFE plate
PTFE machanical accessories
Lip seal
bearing bushing
three disc seal ring
Description:

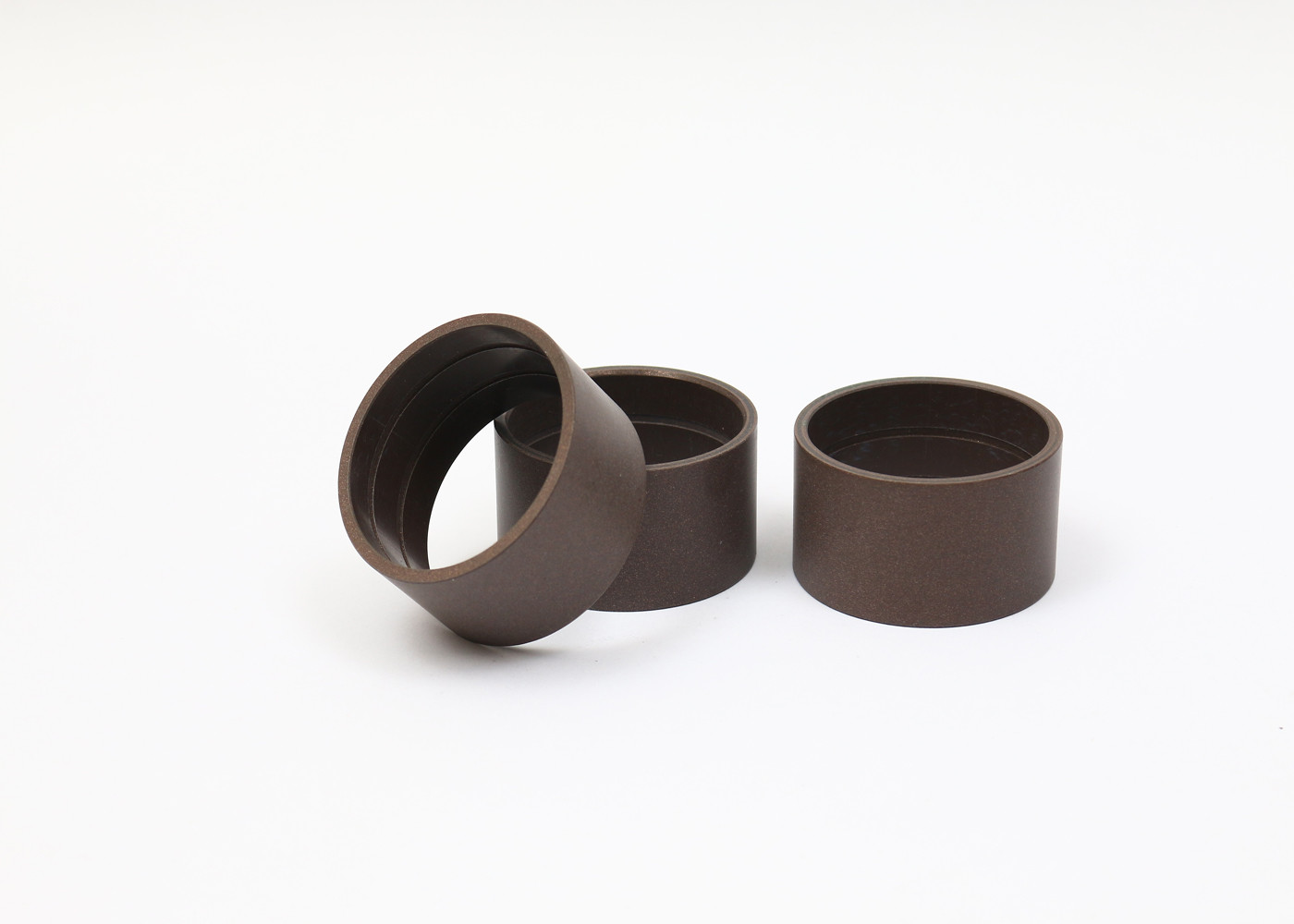

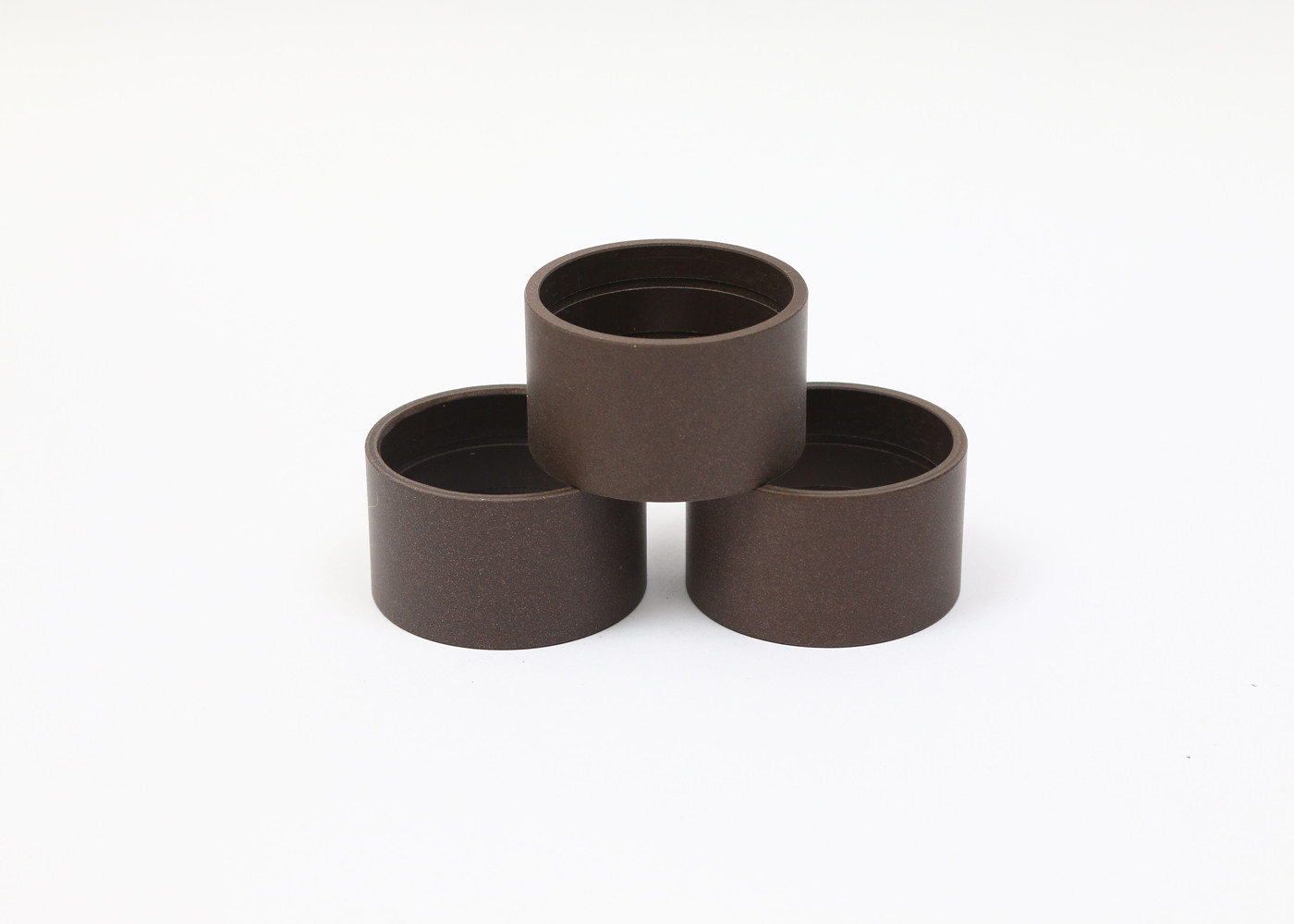

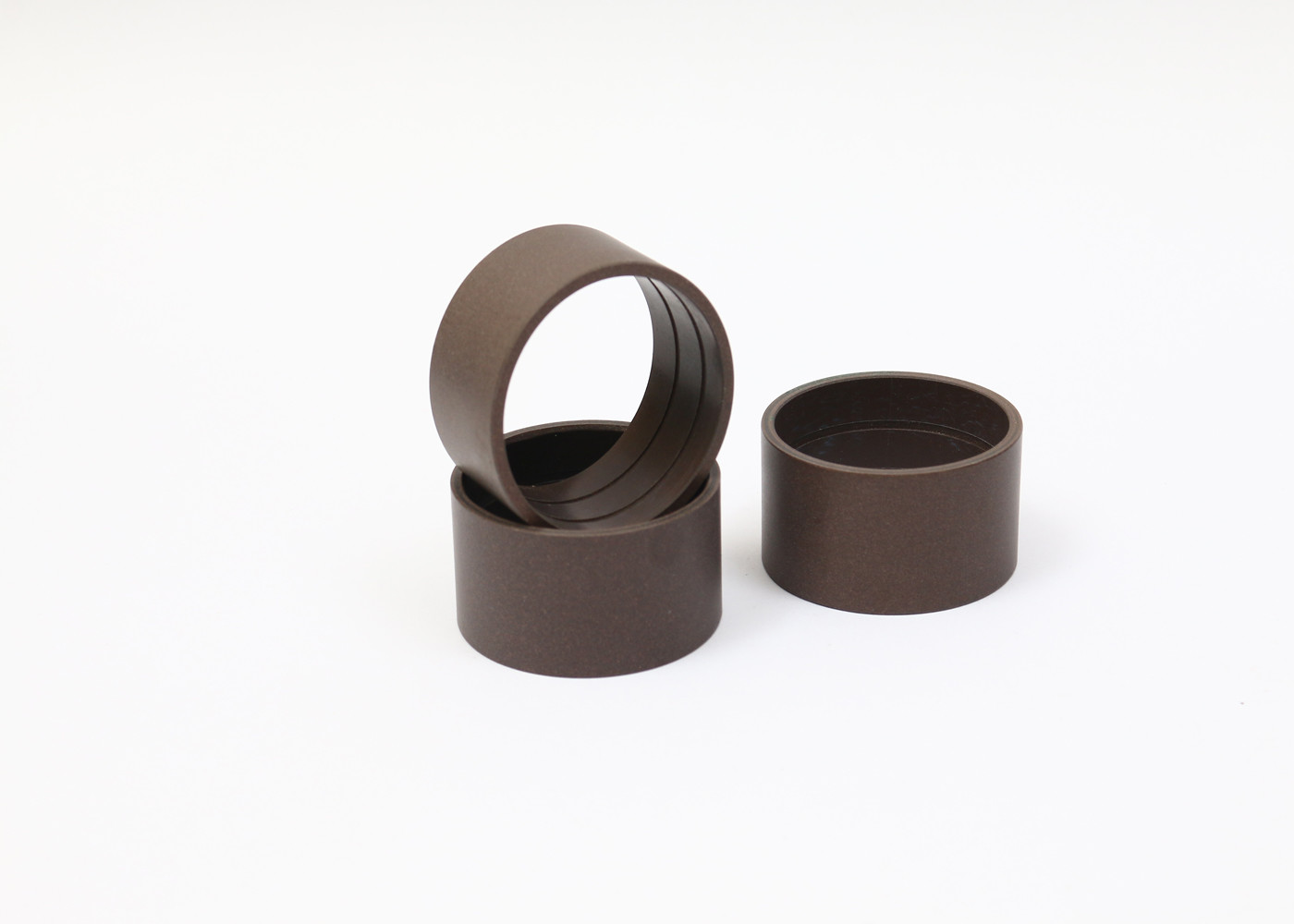

PTFE bushing
Size: As customer's demand
Material: PTFE resin
Function: Good quality
Certificate: ISO9001 & TS16949
1. Product scope:
CNC Machining
2. Produce Processing:
CNC Turning Machining→Drilling/Tapping →Testing→Finishing
3. Testing facility:
Coordinate measuring machine, projection machine, roughness tester, hardness tester, concentricity tester
Capacity
| CNC turning work range | φ0.5mm-φ300mm*750mm |
| CNC milling work range | 510mm*1020mm*500mm |
| CNC stamping work range | 1M*2M(the maximum tonnage:300T) |
PTFE Parts, PTFE resin molded, and then by sintering or made of secondary processing. The detail of specification mainly accord to customers’ demand.
Property
Heat Resistance-Cold Resistance: Continuous operating temperature -90°C~~260°C
Chemical Resistance: Chemical stable except fluorine gas, alkali metals dissolved
Non-adhesive: Prevent the adhesion of almost all pollutants, water contact angle θ = 110 degree
Lowest COF: Have the lowest coefficient of friction (COF=0.02)
Weather ability: Outdoor long-term use will not degrade
Flame resistance: Non-combustible in air (oxygen index> 95%)
Electrical Characteristics: Excellent electrical insulation, broadband dielectric constant and loss factor minimum
Model
Pure PTFE Parts
Filled PTFE Parts: Increase in strength, toughness, wear
Production capability-Machines:
Skiving machines
Milling Machines
CNC lathe machine
Presses
Ovens
5-axis machine
grinding machine
drill machine
injection machines
Applications:
Automotive, telecommunications, medical, defense, and aerospace, and various mechanical parts
Competitive Advantage:
1. Can produce according to customers’ drawings
2. Advanced production equipment
3. Complete set of inspection equipment
Other related pictures:
 |
|
