그라파이트 카본 충전기와 스트립 완충 장치 부분을 입은 1.2명의 밀리미터 두께 폴리테트라플루오르에틸렌
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | WEIWO |
| 인증 | ISO9001:2008 |
| 모델 번호 | WWPTFE161020-1 |
| 최소 주문 수량 | 1,550 PC |
| 가격 | negotiation |
| 포장 세부 사항 | 그리고 나서 표준 수출 패키지와 통에서, 플라스틱 백에서 싸여집니다 |
| 배달 시간 | 새로운 표본을 위한 2 주 |
| 지불 조건 | 전신환, 웨스턴 유니온, L/C (신용장) |
| 공급 능력 | 달 당 150,000pcs |
제품 상세 정보
| 상품 이름 | PTFE 밴드 | 재료 | PTFE + 브론즈 합성물 |
|---|---|---|---|
| 신청 | 완충기 | 융해점 | 600K |
| 길이 | 118mm | 생산 | 펀치 기계 |
| 항복 강도 | 23MPa | 마찰률 | 0.05-0.10 |
| 하이 라이트 | PTFE Band,piston band |
||
제품 설명
1.2mm thickness ptfe wearing strip Shock Absorber Parts with graphite carbon filler
Specifications:
| Features of PTFE guide strip PTFE band for seal ring | ||
| Type of guide strip | ptfe filled bronze guide strip | phenolic resin guide strip |
| Speed | <15m/s | <1m/s |
| Temperature | -60 to 200 °C | -60 to 130 °C |
| Load | 15N/mm2 | 90N/mm2 |
| Performance | wear resistance, temperature resistance, corrosion resistance, etc. | Excellent compression strength, hardness, heat distortion temperature, impact resistance, self lubrication. |
Type of filler -Graphite
Extremely low coefficient of friction
Chemically inert
Usually incorporated with other fillers such as glass or carbon
Increases wear resistance especially against soft metal
Description:
Manufacturers of PTFE Piston Bands
Used in shock absorber struts
Poly Fluoro Piston Bands are designed for hydraulic and pneumatic equipment. Its unique design
prevents equipment seizures which can arise with other forms of guidance materials.
Poly Fluoro Piston Bands offer extremely low friction and break-away forces. This material is also resistant
to all hydraulic fluids, and is suitable for temperatures up to 200°C.
Poly Fluoro Piston bands are the solution to costly cylinder re-machining and repairs for large diameter
equipment. Coils are available in common sizes and are easy to use, cut and install.
The bearing material is made from PTFE with a 40% Bronze filling and is specifically designed to support
heavy loads. The exceptional physical properties and PTFE lubricants make the piston bands suitable for
use on rams or pistons in reciprocating applications.
Meanwhile we can also add other fillers with PTFE, such as glass fiber, carbon fiber, graphite and so on.
Application data
Inspection item | Unit | Data |
Bulk density | G/CM3 | 1.90(±0.10)-for sheet; 2.30(±0.20) for PTFE seal |
Color |
| Green, Blue, White, Black |
Pressure Limit | Bar | 40 |
Temperature Limit | ℃ | 260 |
PH Range |
| 0-14 |
PTFE Seal thickness | MM | 0.5(±0.10)/side |
Gasket Thickness | MM | 2(±0.10) or as customers' request |
| Advantages | 1. Good abrasion resistance, long lifetime. |
| 2. High structure strength, certain degree elasticity. | |
| 3. Without metallic contact of the sliding surfaces. | |
| 4. Control the machine’s vibration. | |
| 5. Absorb the size’s load. | |
| 6. Enlarge the clearance of seal’s extrusion. | |
| 7. Simple groove design, and high load capacity. |
Applications:
It is widely used as flange sealing to joint where strong acid or alkaline or other corrosive.
Competitive Advantage:
Prevents metal to metal scoring and prolongs equipment life
Reduces radial movement on both rams and pistons to extend seal life
PTFE lubricant allows for lower coefficient of friction between mating surfaces
Retrofits existing bearing groves and eliminates unnecessary modifications
Available in common groove width dimensions, minimizing inventory costs
Strips can be cut to size from the coil

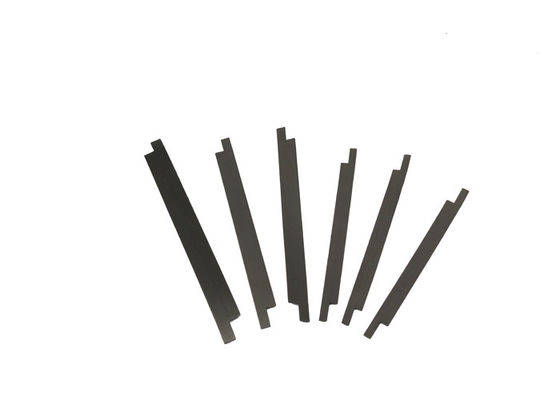

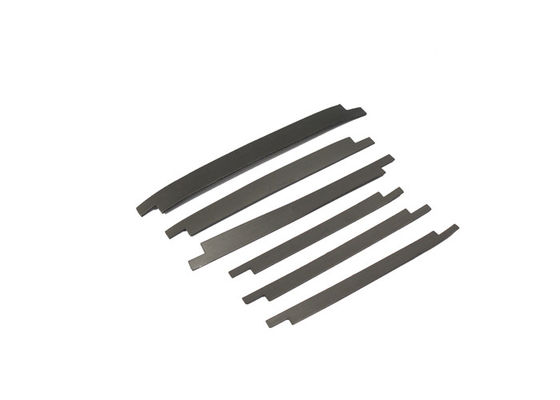

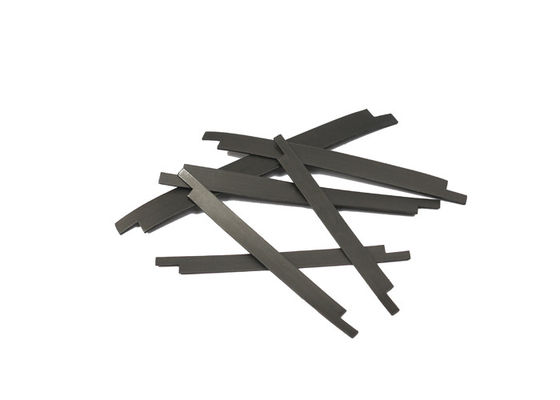

Picture show:
 |
