60HB 마른 오일리스 베어링 10m/S를 지니는 청동제 철강 두 부시
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | WEIWO |
| 인증 | ISO9001:2008 |
| 모델 번호 | 오일레스 부싱 |
| 최소 주문 수량 | 500 PC |
| 가격 | negotiation |
| 포장 세부 사항 | 첫째로 통에서 싸여지고 그리고 나서 외장을 위한 나무 상자로 강화됩니다 |
| 배달 시간 | 저장고를 받는 것 뒤에 15~20 일 |
| 지불 조건 | 전신환, 웨스턴 유니온, L/C (신용장) |
| 공급 능력 | 달 당 50,000pcs |
제품 상세 정보
| 상품 이름 | 덤불로 둘러싸기 | 밴드의 물자 | 청동제 강철 |
|---|---|---|---|
| 신청 | 차 완충기 | 합금 물자 | CuPb24Sn |
| 불순물의 견고성 | 40-60HB | 최대 회선 속도 | 10m/s |
| 그리스 윤활유 | 2.8N/mm2om/s | 동하중 최대 | 130N/mm2 |
| 하이 라이트 | 10m/s 두 부시 Bearing,60HB 오일리스 베어링,마른 오일레스 두 부시 베어링 |
||
제품 설명
Machining Of Sleeve Du Bushing with rust-proof oil plated used in gear pump
Specifications:
SF-1(du) oilless bearing bushing (PTFE Composite)
SF-2 (dx) slide bearing bushing (POM Composite)
FB090 (FB090G) bronze bushing
JDB, JFB solid graphite lubricating bushing
FU sintered bronze or iron bushing
FZ POM/Al/Cu ball cage retainer
DU bushing Bearing
Full range of size and customized
High quality OEM manufacturer with much experience
Description:
Cylindrical bushes, flange bushes, thrust washers and strips. non-standard parts.
STEEL PLATE SELF-LUBRICATING BUSHING (WITHOUT PB)
It's made of high quality low-carbon steel plate, sintered porous bronze as its interlayer and the
compound of PTFE material and Pb as its surface. As it is no lead, which makes the bearing lubricating
condition cleaner and in accordance with environmental request. It's based on bronze alloy of a particular
formulation with high density with sintered bronze layer as its interlayer, with the compound of mostly
PTFE and other factors. As it is no lead, which makes the bearing lubricating condition cleaner, and in
accordance with environmental request.
Specifications
1, Reliable quality & Reasonable price
2, Soon of delivery time
3, Professional factory in china
4, wide range production
1. PTFE / Fibre mixture thickness 0.01 ~ 0.03 MM, provides an excellent initial transfer film, which
effectively coats the mating surfaces of the bearing assembly, forming an oxide type solid lubricant film.
2. Sintered bronze powder thickness 0.20-0.35MM, provides Max. thermal conductivity away from the
bearing surface, also serves as a reservoir for the PTFE- Fibre mixture.
3. Low carbon steel, gives exceptionally high load carrying capacity, excellent heat dissipation.
4. Copper/Tin plating thickness 0.002mm, provides good corrosion resistance
Typical application:
This kind of bearing can be applied under dry, high temperature, high pressure, corrosive, water or other
chemical environments when no oil can be introduced. Now is widely be used in automotive products line,
water engineering, dam gate, plastic industries, successive casting machines, steel rollers in metallurgy
industry, mineral machines, ships, turbo generators, hydraulic turbines and injection molding machines..
Applications:
Car or motorbike shock absorber
Equipment Advantage:
Bronze-steel sintering line
Automatic tooling line
Grinding machine
Rolling mill machine
CNC machine
Punching machine
Gage lathe machine
Hydraulic machine

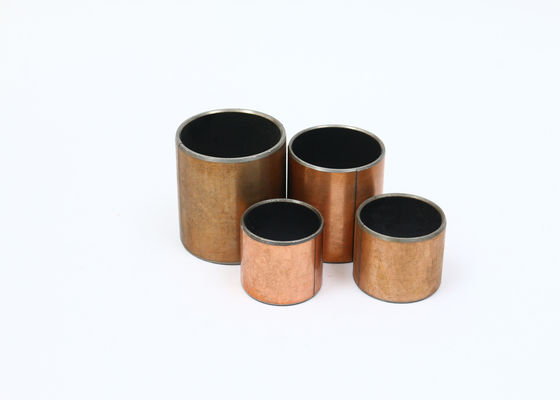

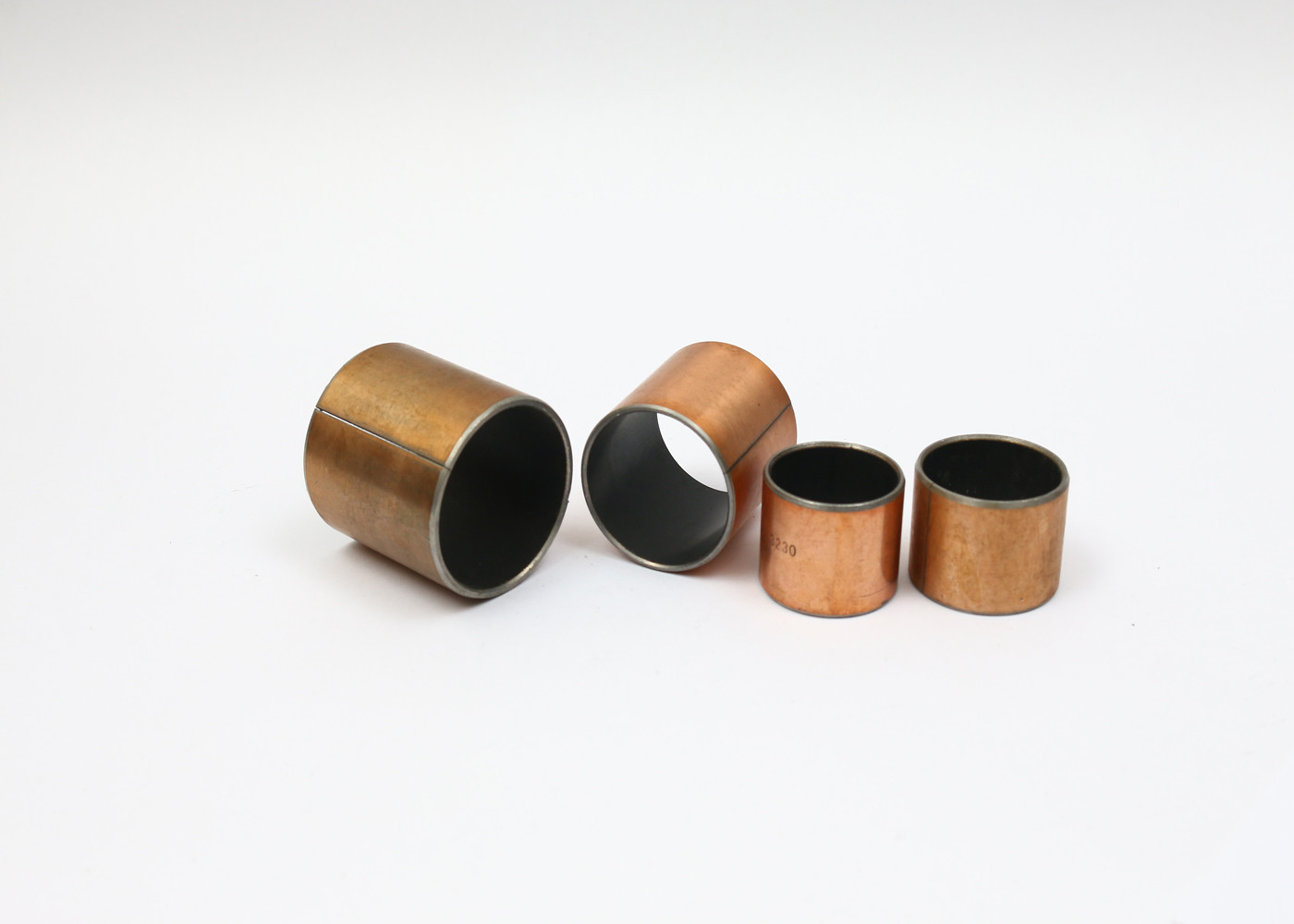

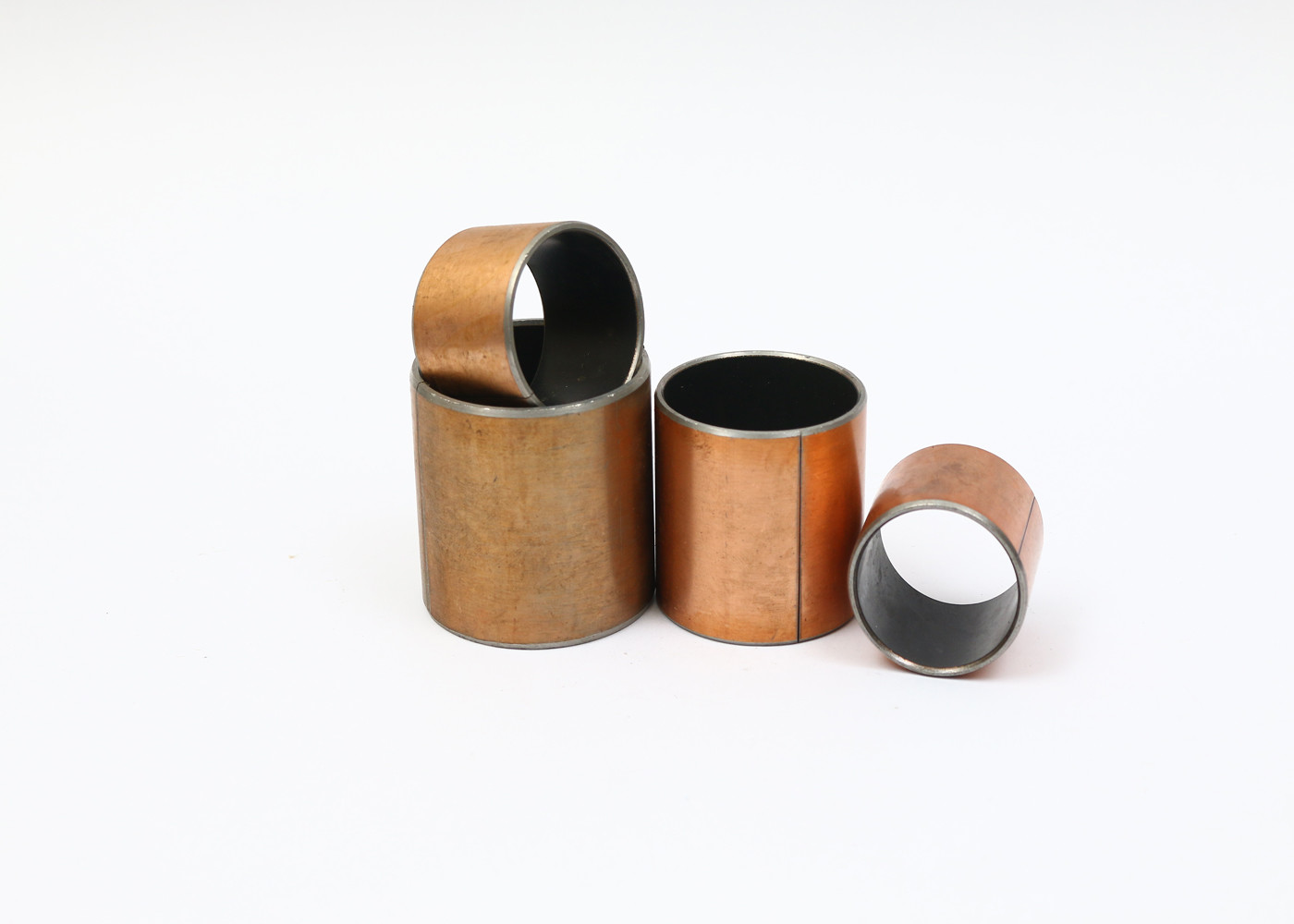

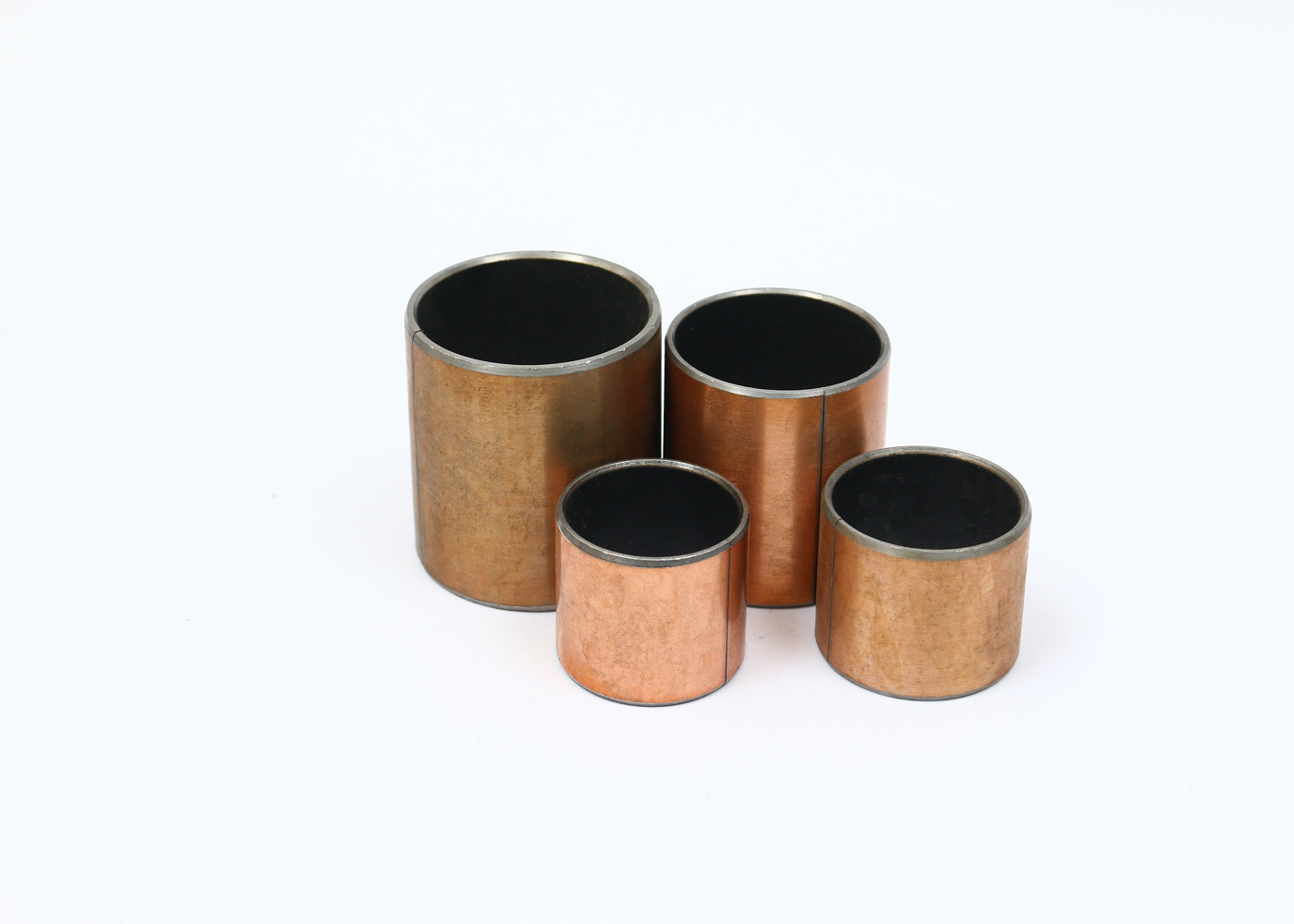

Picture Show
 |
