PTFE 레이어와 태도에 기름을 치는 낮은 탄소 강철판 기반을 둔 본인
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | WEIWO |
| 인증 | ISO9001:2008 |
| 모델 번호 | SF-1D |
| 최소 주문 수량 | 500 PC |
| 가격 | negotiation |
| 포장 세부 사항 | 통 + 팔레트, 표시 로고, 앤티-러스트 오일, 플라스틱 박막 플라스틱 백 또는 용지함을 출력합니다 |
| 배달 시간 | 10 일 정상적으로, 양에 따르면 |
| 지불 조건 | 전신환, 웨스턴 유니온, L/C (신용장) |
| 공급 능력 | 달 당 50,000pcs |
제품 상세 정보
| 상품 이름 | 덤불로 둘러싸기 | 안 층 | PTFE |
|---|---|---|---|
| 밴드의 물자 | 청동제 강철 | 형태 | 실린더, 스러스트 패드 (thrust pad) |
| 신청 | 중차량 | 타입 | 소매, 플랜지 |
| 코팅 | 스프레이 PTFE | 특징 | 좋은 웨어 |
| 하이 라이트 | 금속,소매 스러스트 패드 (thrust pad) 본인 윤활 처리 태도,스프레이 PTFE 본인 급유 태도에 기름을 치는 PTFE 레이어 본인 |
||
제품 설명
Low carbon steel plate based self-lubricating bearing with compound of PTFE layer
Specifications:
1. DU bushing Bearing
2. Full range of size and customized
3. High quality OEM manufacturer with much experience
|
DU Bushing SF-1D |
oilless sliding bearing |
|
wrapped by steel backing |
|
|
sinter bronze inter layer, PTFE anti-wear surface |
Description:
Sleeve Bushing with PTFE
Specifications
Non - oil lubrication or less lubrication.
Low maintenance, with better abrasion resistance,
Low friction index and anti-aging.
Materials
1. PTFE with mixture 0.01~0.03mm
2. Porous bronze 0.2~0.3mm
3. Steel backing 0.7~2.3mm
4. Tin-plating 0.005mm or copper plating 0.008mm
Features:
1. No pre-lubrication required
2. Able to working under extreme high/low temperature with low speed
3. Working temperature range: -100℃~+300℃
Self Lubricating Bushing is wrapped by steel backing, Sinter bronze inter layer and PTFE anti-wear
surface. It is wildly used in hydraulic gear pumps, oil cylinder, oil Damping bushes and piston rings for
automobiles and motorcycles and textile, food-stuff machines etc
Application Feature:
1). Working under oilless or minim oil state, maintenance free or just need a litter maintenance
2). Resist Abrasion, low coefficient of friction long operation life.
3). Operation in -195°C~+280°C. 4).Good mending, low-noise, non-pollution.
4).Thin-walled structure, light in weight, which can reduce the machine to small size.
5). Forming a transferred film during operation to protect, safe and trouble free.
6). Low demand to the shape even no surface hardness treatment, which lower the cost of the mating components.
7).No absorption to water/oil, small coefficient of thermal emption, good thermal conductivity and size stability
8).The back of the steel strip can be plated with various metals, anti-corrosion
Maintenance
It is a bushing with PTFE sliding layer. Lubrication is therefore not necessary, but basically possible.
Applications:
Automotive:
McPherson struts and shock absorbers, doors, bonnets and tailgate hinges, steering columns, clutches,
gearbox selector fork guides, wiper arms, power steering pumps, pedal bushes, ABS equipment, etc.
Industrial:
Aerospace, agricultural equipment, construction equipment, material handling equipment, forming
machines-metal, plastic and rubber, office equipment, medical and scientific equipment, packaging
equipment, pneumatic and hydraulic cylinders, pumps and motors, railroad and railways, textile
machinery, valves, etc.
Product Advantage:
|
SF-1D bushing |
Good interchange ability, easy installation |
|
Under heavy load, friction coefficient small, maintain the accuracy of long-term unchanged |
|
|
Easy to get a higher velocity |

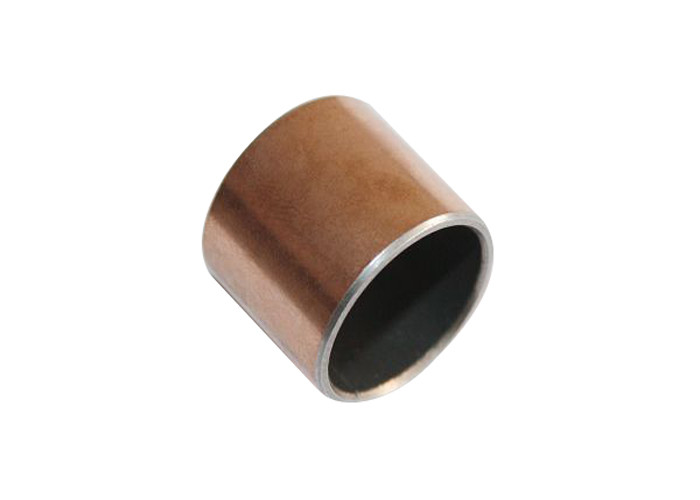

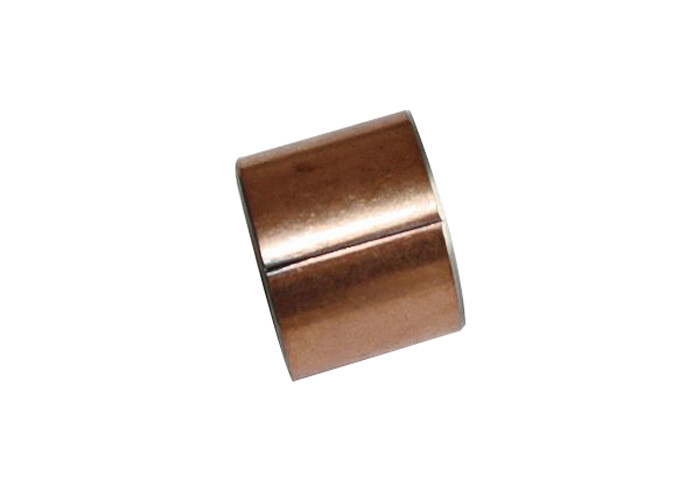

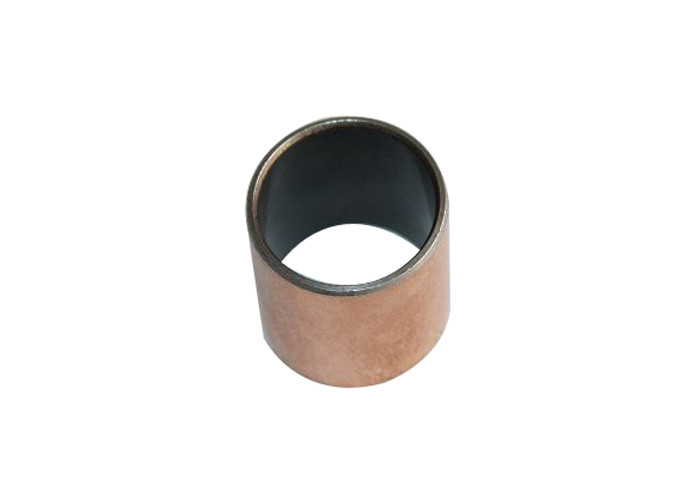

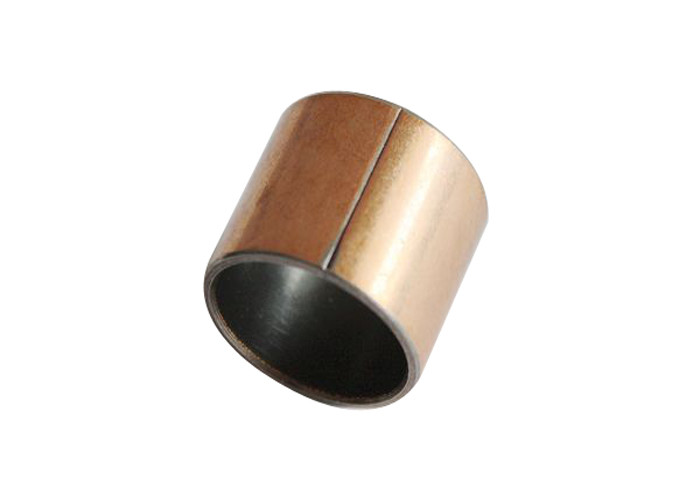

Picture Show
 |
