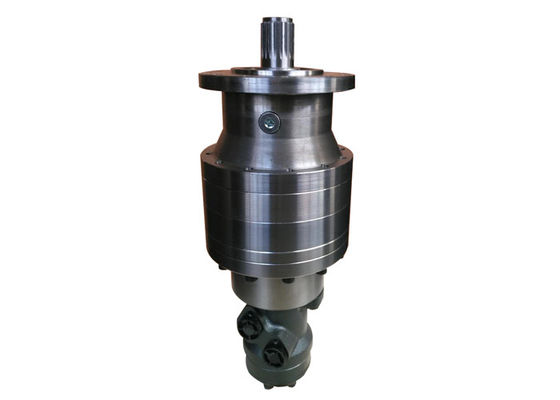

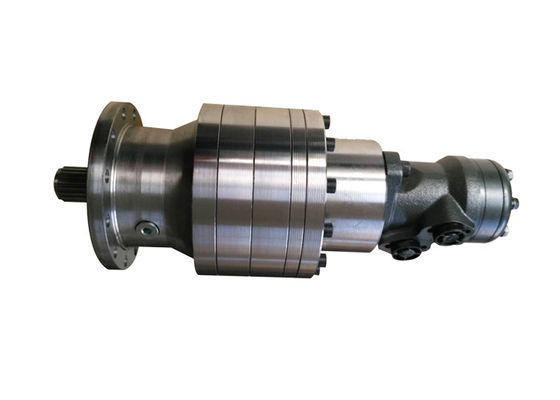

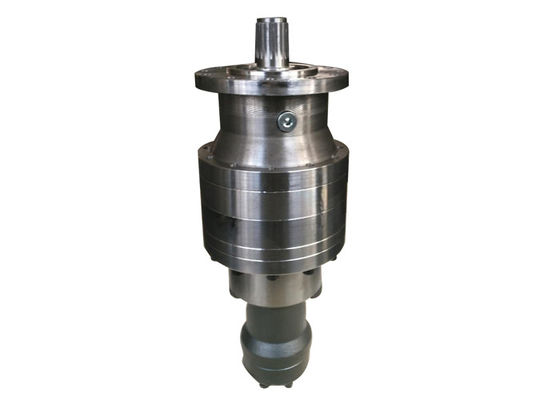

크레인 슬루잉 시스템을 위한 동축 구조 회전 속도 환원제 모터
| 원래 장소 | 닝보, 중국 |
|---|---|
| 브랜드 이름 | WEIWO |
| 인증 | ISO9001:2008 |
| 모델 번호 | D305PL1 |
| 최소 주문 수량 | 협상 |
| 가격 | Negotiation |
| 포장 세부 사항 | 표준 수출 나무 상자 |
| 배달 시간 | 7-15 작업 일 |
| 지불 조건 | L/C (신용장), 전신환 |
| 공급 능력 | 달 당 1000 유닛 |
제품 상세 정보
| 타입 | 회전식 환원제 | 색 | 주문 제작됩니다 |
|---|---|---|---|
| 속도 범위 | 5-50 RPM | 토크 | 7500 N.m |
| 전동기형 | BMR 시리즈 | 설계 형식 | 동축 구조 |
| 하이 라이트 | 50RPM 속도 저감기 motor,50RPM 감속 모터,동축 구조 BMR 속도 저감기 모터 |
||
제품 설명
Part Name: Single Step And Self-locking Rotary Speed Reducer For Crane Slewing System
Especially used in crane slewing system
Other applications:
Hydraulic transmission of cement pump truck, marine machinery, rotary reducer, port, mining, agriculture, forestry, metallurgy and other machinery.
Main technical parameters are shown in the table below:
| Model | D305PL1 |
| Processing method | Custom-made |
| Gear type | Cylindrical gear |
| Installing method | Vertical type |
| Layout forms | Coaxial type |
| Hardness of tooth surface | Hard |
| Hydraulic motor | BMR series |
| Speed range | 5-50rpm |
| Transmission ratio (i) | 3.7-6.3 |
| Output speed | 12rpm |
| Rated torque | 5000N.m |
| Interval torque | 6000N.m |
| Torque | 7500N.m |
| Recommend output gear | M=8,Z=15,X=0.5 |
| Series | Single step |
Rotary speed reducer is a kind of integration of driving power source of full circle rotary reducer transmission mechanism. Use a rotary bearing as transmission follower and adhesion mechanism, efficient allocation of driving power source and the main transmission parts, which have functions of rotary, speed reduction and drive function, with advantages of simple structure, manufacture and maintenance convenient. Rotary drive device can be basically divided into single worm drive rotary drive device and double worm drive rotary drive device
Characteristics of worm gear and worm mechanism:
1. Large transmission ratio, which is more compact than staggered helical gear mechanism
2.The meshing tooth surfaces of the two wheels are in line contact, and its bearing capacity is much higher than that of the staggered helical gear mechanism
3.Worm transmission is equivalent to spiral transmission, which is multi-tooth mesh transmission, so the transmission is stable and the noise is small
4. Self-locking.
Application of rotary drive:
Double worm slewing drive for construction machinery, slewing drive for truck crane, slewing drive for heavy-duty flatbed transport truck, slewing drive for aerial work truck drive, rail car slewing drive, dirt suction car slewing drive, rotary claw slewing drive, bridge testing car slewing drive device, rotary drive device, wind power yaw rotary drive device, solar energy rotary drive.
Drawing details with no brake:
 |
Drawing details with brake:
|
Output shaft form:
|
