SAE1035 / 1045 Chrome Plating Shock Absorber Rod Coating Thickness 10 ~ 25μM From Shocks
| 원래 장소 | 닝보 |
|---|---|
| 브랜드 이름 | WEIWO |
| 인증 | IATF16949:2016 |
| 모델 번호 | K30-50-2038 |
| 최소 주문 수량 | 200 세트 |
| 가격 | USD1.20 ~ 1.65 /set |
| 포장 세부 사항 | 목재 파렛트 또는 나무상자 밖에, 한 통 또는 플라스틱 기포 트레이에서 10-50 PCS. |
| 배달 시간 | PO 뒤에 있는 15-25 일은 확인했습니다 |
| 지불 조건 | L/C (신용장), 전신환, 웨스턴 유니온 |
| 공급 능력 | 일 당 500 세트 |
제품 상세 정보
| 외경 | 20 밀리미터 | 총계 길이 | 370mm |
|---|---|---|---|
| 한쪽 끝의 OD | M8 Ｘ 1.25 | 또 다른 마지막의 OD | M10 Ｘ 1.25 |
| 재료 | S 45 C | 크롬 두께 | 10 ~ 25 μm |
| 거칠기 | Rz0.2~0.4 / Ra0.1max | 도입 견고성 | HRC40~HRC60 |
| 하이 라이트 | 수력 피스톤 로드가 피스톤 로드를 파냅니다,hollow piston rod |
||
제품 설명
SAE1035 / 1045 Chrome Plating Piston Rod With Coating Thickness 10 ~ 25μm From Shocks
Specification:
| Steel Material | 45# DIN CK45 / JIS 45C and 35 # DIN CK35 / JIS 35C |
| Chrome Thickness | 10~25 μm |
| Chrome Hardness | 850 HV Min |
| Roughness | Ra 0.2 Micron Max |
| Straightness | 0.2/1000mm |
| Yield Strength | According to the steel material and customer requirement |
| Tensile Strength | According to the steel material and customer requirement |
| Elongation | According to the steel material |
| Bend Test | According to customer requirement |
Manufacturing Main Process description:
1. Hydraulic Steel Raw Material Cutting
2. CNC Machining + additional broaching and milling operations
3. Induction Hardening
4. Chrome Plating
5. Dehydrogenation and Tempering
6. Polish and Superfinish Polish
7. 100% Inspection
8. Craft Boxes and Wooden Case Packaging
Description:
| Surface treatment | Blackening, polishing, anodize, chrome plating, zinc plating, nickel plating, grinding… |
| Quality Assurance | IATF16949:2016 certified/SGS/TUV |
| Drawing formats | Solid works, Pro/Engineer, AutoCAD, UG, PDF |
|
Equipment used |
Japan 5-axis TSUGAMI-B-038T CNC turing machine |
| Japan 4-axis GAMA DMN-650 machining center | |
| Cylindrical Bore Grinders | |
| Wire EDM | |
| Magnetic grinding machine/ grinding Vibration machining | |
| Oven | |
| Ultrasonic cleaning machine | |
| Vacuum packing machine | |
|
Inspection device |
VMS2.5d measuring machine |
| Japan Mitutoyo tool microscope | |
| Japan Mitutoyo digimatic micrometer | |
| Japan Mitutoyo hardness tester | |
| Japan Mitutoyo calipers | |
| Japan Mitutoyo dial indicator | |
| Japan Mitutoyo height measuring tool | |
| Japan Mitutoyo tubular inside micrometer | |
| Japan Marble platform | |
| Go No Go gauge | |
| Electronic digital display caliper Ring gauges | |
|
Industry used |
Machinery; heavy duty equipment; electronic device; Auto spare parts; optical telecommunication… |
Advantages:
1. Always being Reliable, Professional and Proactive.
2. More than 15 years in the CNC precision machining industry.
3. Japan Tsugami CNC machines, with cutting edge CNC solution.
4. IATF16949 : 2016 Quality control system, we not only provide qualified products, but also care about perfect looking surface.
Other questions:
Q1. Are you a Manufacture or Trading Company?
A1:We are manufacturer. We have been in this line for more than 10 years
Q2. What kinds of parts can you supply?
A2: 1. Piston rod 2. Oil seal 3. Rubber parts 4. Pistons. 5. Stamping parts 6. Powder metallurgy parts etc.
Q3. What is your production Lead Time?
A3: 5 working days for goods in stock ,15-45 days for mass products.
Q4. What is your payment way?
A4:We accept payment by western union, T/T, L/C. Normally. 30% deposit in advance, 70% balance before shipment.

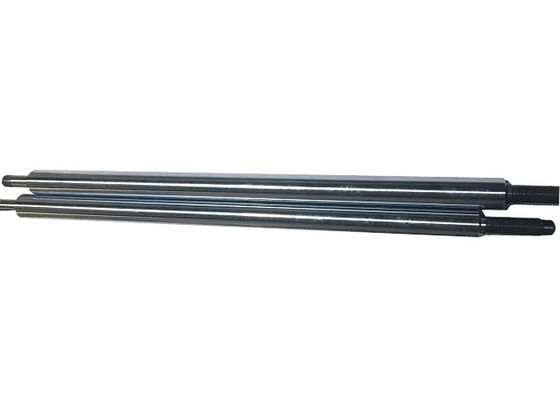

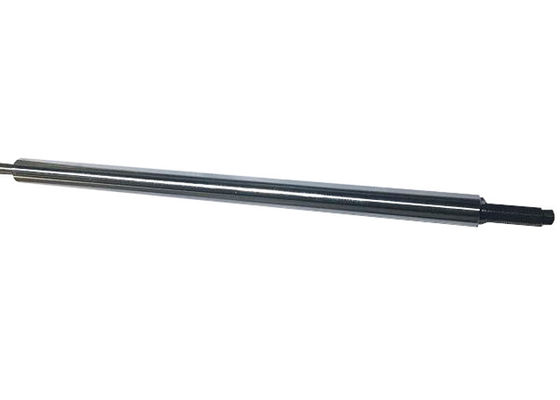

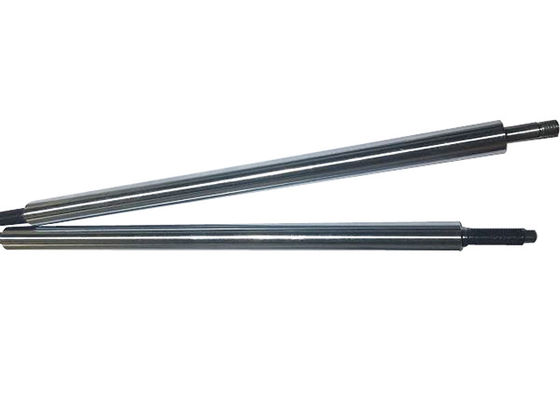

Picture:
 |
