견인차 기계적 공압 핵심 액슬 구동 샤프트 25 um CK45
| 원래 장소 | 닝보 |
|---|---|
| 브랜드 이름 | WEIWO |
| 인증 | IATF16949 |
| 모델 번호 | K25-50-1211-6 |
| 최소 주문 수량 | 200 세트 |
| 가격 | USD1.2 ~ 1.6 /set |
| 포장 세부 사항 | 목재 파렛트 또는 나무상자 밖에, 한 통 또는 플라스틱 기포 트레이에서 10-50 PCS. |
| 배달 시간 | PO 뒤에 있는 15-25days는 확인했습니다 |
| 지불 조건 | L/C (신용장), 전신환, 웨스턴 유니온 |
| 공급 능력 | 일 당 500 세트 |
제품 상세 정보
| 외경 | 12.5mm | 총계 길이 | 330 밀리미터 |
|---|---|---|---|
| 한쪽 끝의 OD | M8 Ｘ 1.25 | 또 다른 마지막의 OD | M10 Ｘ 1.25 |
| 재료 | S 45 C | 크롬 두께 | 10 ~ 25 μm |
| 하이 라이트 | 25 um 차축 구동 Shaft,CK45 차축 구동 Shaft,12.5mm 축 구동축 |
||
제품 설명
Axle Drive Shaft For Can Am Pto Shaft Tractor Mechanical Pneumatic Core
Main features:
1.Imported mateiral and technology
2.Factory directly supply.
3.Extensive application and high precision performance.
4.Simple installation.
5.Durable.
6.All specification can be customized.
Specification:
| Product Name | Shafts |
| Part No | K25-50-1211-6 |
| Materials | CK45/CK35/SAE1040/SAE1045 |
| Types of | Tractor |
| Form of sale | Factory directly sale |
| Application | Auto parts |
| Custom Design | OEM |
| Features/Description | Car parts |
| Specification | Ø12.5/Ø20/Ø22 |
| Sample Lead Time | 7 days |
| Sample price | For Free |
| Market | Europe/USA/Asia |
| Characteristic | Hard Chrome plating |
| Chrome Thickness | 10~25 μm |
| Chrome Hardness | 850 HV Min |
| Roughness | Ra 0.2 Micron Max |
| Straightness | 0.2/1000mm |
| Yield Strength | According to the steel material and customer requirement |
| Tensile Strength | According to the steel material and customer requirement |
| Elongation | According to the steel material |
| Bend Test | According to customer requirement |
Manufacturing Main Process description:
1. Hydraulic Steel Raw Material Cutting
2. CNC Machining + additional broaching and milling operations
3. Induction Hardening
4. Chrome Plating
5. Dehydrogenation and Tempering
6. Polish and Superfinish Polish
7. 100% Inspection
8. Craft Boxes and Wooden Case Packaging
Description:
| Surface treatment | Blackening, polishing, anodize, chrome plating, zinc plating, nickel plating, grinding… |
| Quality Assurance | IATF16949:2016 certified/SGS/TUV |
| Drawing formats | Solid works, Pro/Engineer, AutoCAD, UG, PDF |
|
Equipment used |
Japan 5-axis TSUGAMI-B-038T CNC turing machine |
| Japan 4-axis GAMA DMN-650 machining center | |
| Cylindrical Bore Grinders | |
| Wire EDM | |
| Magnetic grinding machine/ grinding Vibration machining | |
| Oven | |
| Ultrasonic cleaning machine | |
| Vacuum packing machine | |
|
Inspection device |
VMS2.5d measuring machine |
| Japan Mitutoyo tool microscope | |
| Japan Mitutoyo digimatic micrometer | |
| Japan Mitutoyo hardness tester | |
| Japan Mitutoyo calipers | |
| Japan Mitutoyo dial indicator | |
| Japan Mitutoyo height measuring tool | |
| Japan Mitutoyo tubular inside micrometer | |
| Japan Marble platform | |
| Go No Go gauge | |
| Electronic digital display caliper Ring gauges | |
|
Industry used |
Machinery; heavy duty equipment; electronic device; Auto spare parts; optical telecommunication… |
Advantages:
1. Always being Reliable, Professional and Proactive.
2. More than 15 years in the CNC precision machining industry.
3. Japan Tsugami CNC machines, with cutting edge CNC solution.
4. IATF16949 : 2016 Quality control system, we not only provide qualified products, but also care about perfect looking surface.
Products we can produce
| roll | Mandrel continuous casting roll | Continuous casting roller | A slender shaft | Roller set |
| Cloth guide roller | The straightening roll | Mirror roll | Pull roller masking | bearing |
| The flange shaft | Eccentric shaft | To hole shaft | Hydraulic shaft | Large diameter shaft |
| Oil pump fittings | Guide post | Screw axis | CNC milling machine shaft | Solid steel shaft |
| Hollow shaft | turboshaft | The output shaft | Linear optical axis | Other shafts |
Our Services
1). Drawing:
We can translate your original drawings, make manufacturing procedure, offer the best suggestions on the design.
2). Quality:
We have full set of quality control system to guarantee best product quality.
we can make different Item Testing Plan, Manufacturing procedure etc.
3).Inspection:
We have professional, qualified inspectors who will make sure that all the products are qualified.

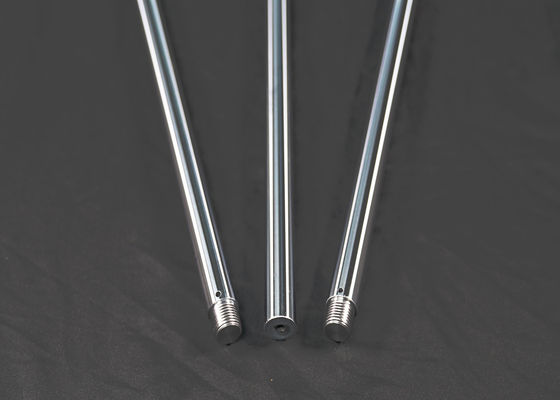

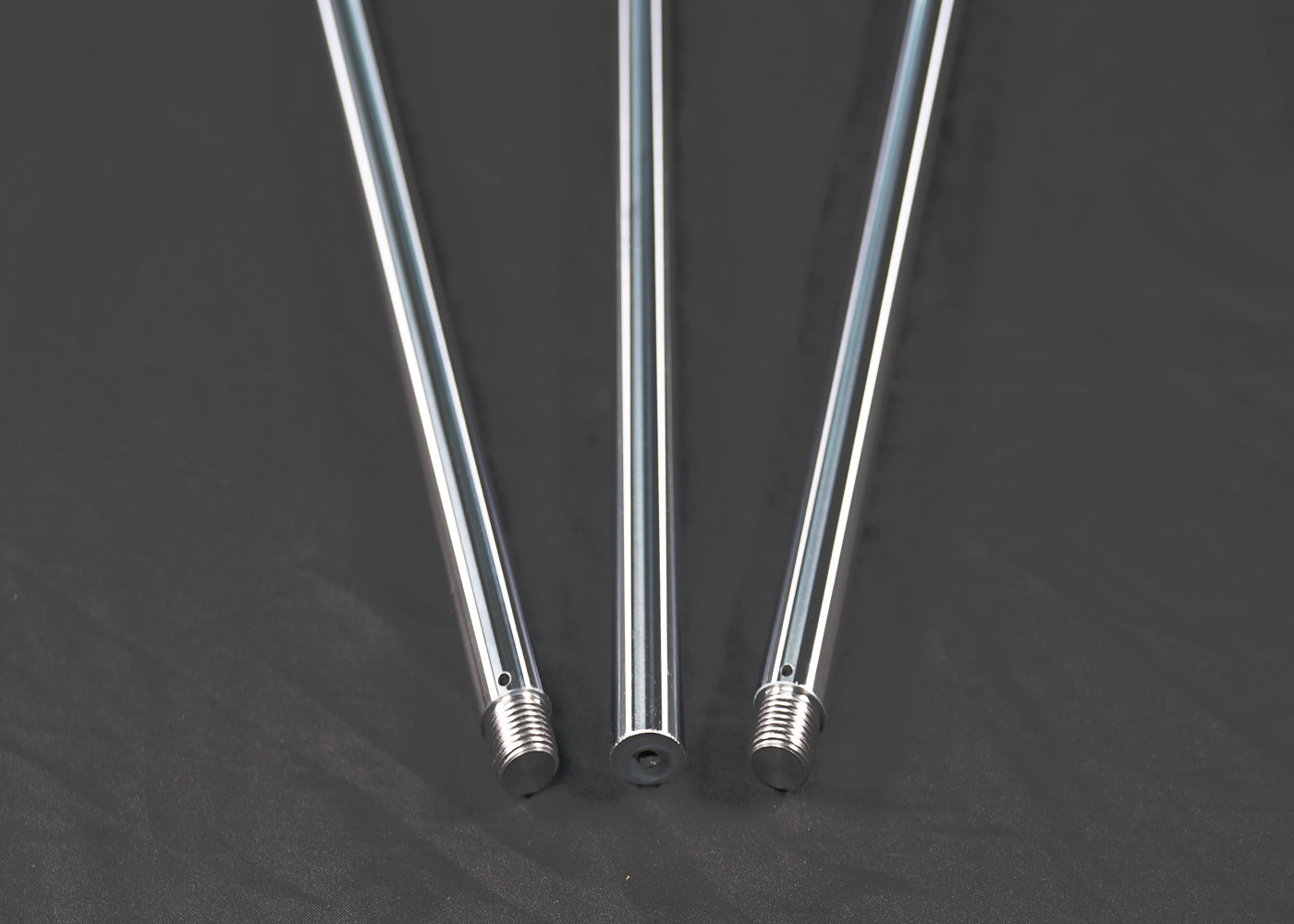

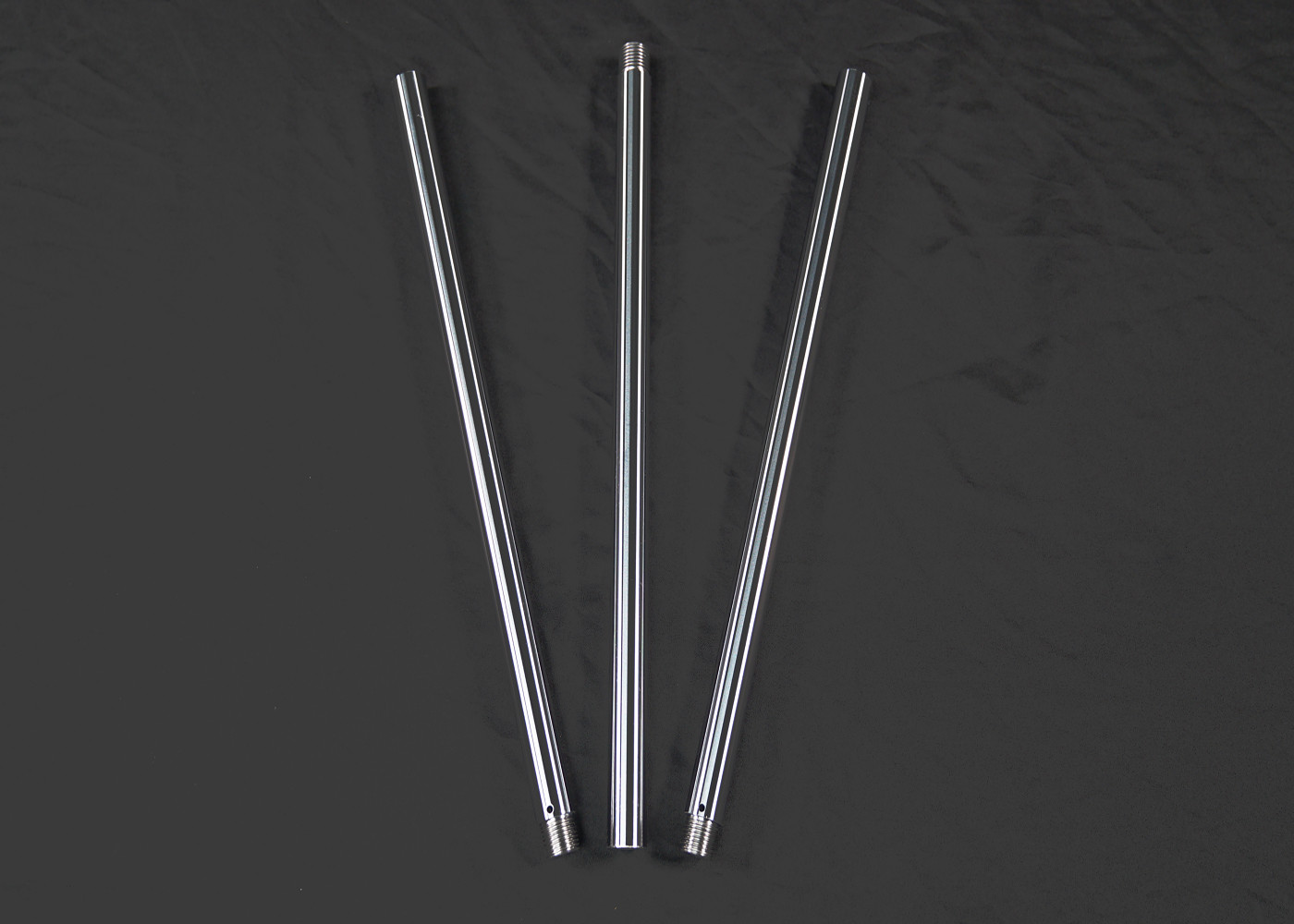

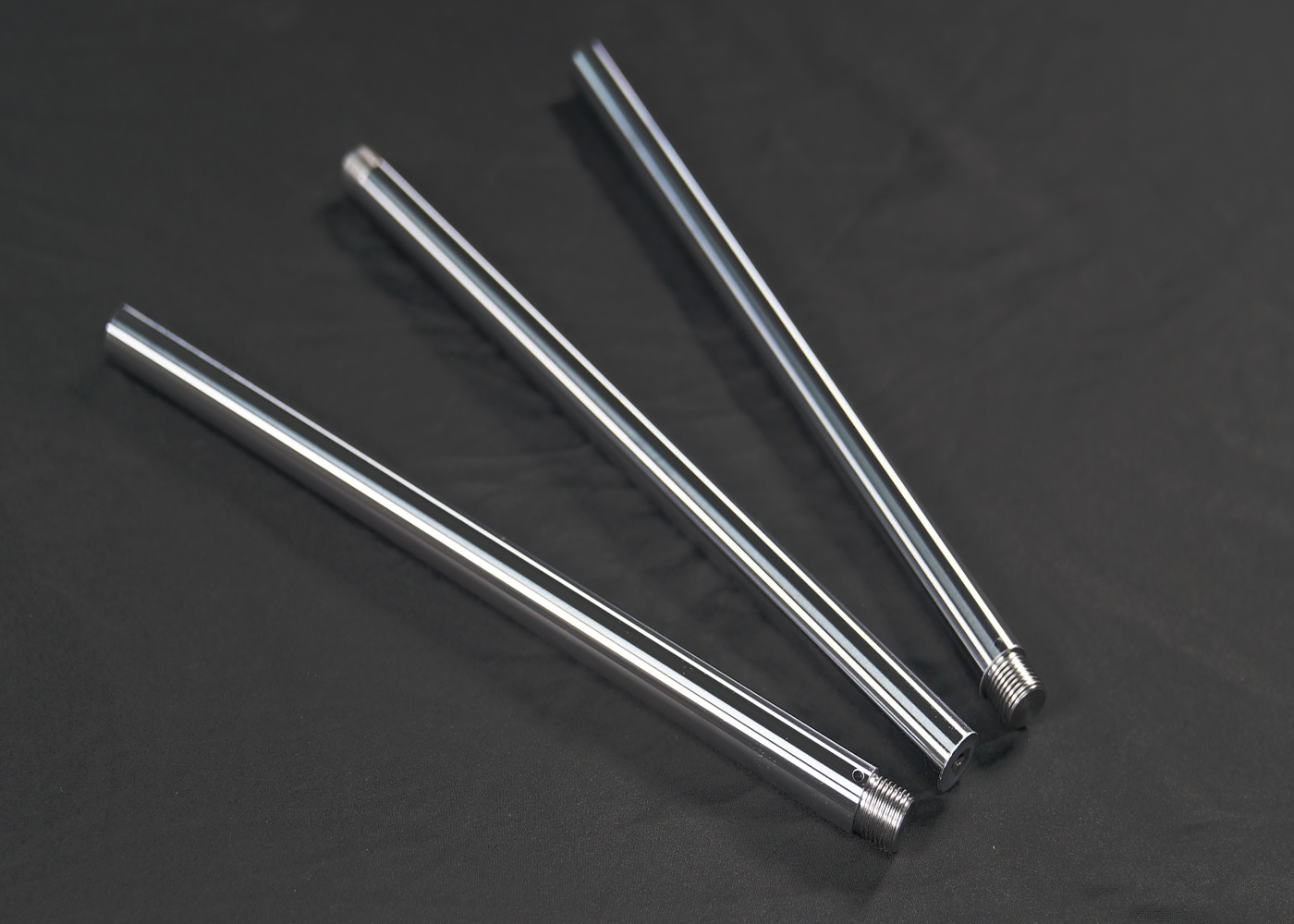

Picture:
 |
