셀프 윤활 처리 브로칭 플렛링 가스킷 PTFE 단열재는 200 밀리미터를 분할합니다
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | WEIWO |
| 인증 | ISO9001:2008 |
| 모델 번호 | WW-J0726 |
| 최소 주문 수량 | 500 PC |
| 가격 | USD0.015 |
| 포장 세부 사항 | 작은 플라스틱 백 안으로 그리고 나서 상자 안으로 부품을 싸세요 |
| 배달 시간 | 새로운 세공을 위한 한 주 |
| 지불 조건 | 전신환, 웨스턴 유니온 |
| 공급 능력 | 1주일에 50,000 PC |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x제품 상세 정보
| 상품 이름 | 반지 틈막이 | 재료 | 100% PTFE |
|---|---|---|---|
| 절차 | CNC 기계가공 | 신청 | 산업 |
| 색 | 적격자 | 타입 | 부상하면서, 구멍을 뚫기 |
| 기술 | 누르기 | 사이즈 | 그림에 따르면 |
| 강조하다 | PTFE 플렛링 gasket,200mm 플렛링 가스킷,셀프 윤활 처리 브로칭 절연부 |
||
제품 설명
CNC machining insulation PTFE parts with stable chemical properties
Specifications:
| Product name | PTFE plastic workpiece customization |
| Plastic material | PTFE,POM,PVC,Nylon,PEEK,PU,PA,Acrylic,PE,UPE,etc. |
| color | White,black,or as your requirement |
| Diameter | 5-200mm,or customized |
| Certification | ISO9001,SGS,Test Report,RoSH |
| Shape | Sheet, rod, tube, gear, rack,pulley, guide rail, Plastics fittings,and so on |
| Packing | Plastic bags,Cartons,Wodden case,Pallet,Container,ect. |
| Other |
24 hours instant and comfortable customer service. Shipping status notification during delivery. Regular notification of new styles & hot selling styles. |
1. All of PTFE material is imported from international famous brand.
2. Small quantity is accepted
3. We have SGS certificate, it is complied with ROHS standard
4. OEM orders are welcome
Description:
PTFE is the mostly consumed category of florin plastics, Which has the lowest coefficient of friction in all the engineering plastics, Whose long-
term working temperature can reach 200 to 260℃.
PTFE material has the following main characteristics: the excellent chemical corrosion-resistance, which is able to endure All kind of chemistry
material. And it has rather good electricity-resistance, which is not affected by the temperature and is called "Kind of plastics", PTFE plastic has
excellent corrosion-resistance, aging-resistance, high(low) temperature resistance, good lubrication and insulation, non-adhesiveness,
toxicological harmless. It is widely used in industries like aviation, chemical industry, electric and electronics, bridge, mechanical manufacturing,
textile, paper making, ceramics etc.
Testing Data Contrast of Some Typical Filled Products
| Item | Pure PTFE | 60% Bronze | 20% Glass Fiber | 15% Glass Fiber 5% Graphite | 20% Caobon Fiber | Unit |
| Density | 2.18 | 3.9 | 2.26 | 2.22 | 2.01 | g/m3 |
| Tensile strength | 276 | 127 | 175 | 158 | 189 | Mpa |
| Elongation at break | 238 | 101 | 207 | 205 | 92 | % |
| ROCKWELL Hardness | 3.2 | 33.8 | 6.4 | 11.3 | 32.1 | - |
| Friction Coefficient | 0.13 | 0.18-0.2 | 0.2-0.24 | 0.15-0.17 | 0.16-0.18 | - |
| Bending Strength | 207 | 280 | 210 | 225 | 320 | °C |
Peculiarity
1. High chemical properties
2. Temperature range from -180°C to +260°C
3. Has the lowest coefficient of friction of all the known solid materials
4. Not aging
5. Nonstick
6. Self lubricating
PTFE filled with other materials:
| Filled materials |
Common filled ratio ( Quantity %) |
Main performances |
| Bronze | 40, 60 | Increases hardness and wear resistance; Increases dimensional stability and compressive strength; Not suitable for corrosive or electrical applications |
| Carbon | 5, 10, 15 | Increases compressive strength, hardness, wear, and load properties. Good chemical resistance; Improves electrical properties. |
| Graphite | 5, 10, 15 | Improves the deformation under load; Reduces initial wear; Improves thermal and eletrical conductivity |
| Glass Fiber | 10, 15, 25 | Increases compressive strength, rigidity and wear. Reduces creep and cold flow; Improve Dimensional Stability. |
| Carbon Fiber | 10 , 15, 25 | Increases compressive strength, hardness, wear, and load properties. Reduces creep and cold flow |
| POB (polyphenyl ester) |
5, 10, 15 |
Improve the lubrication performance; Enhance the mechanical strength; Increase using temperature |
| BaSO4 | 5, 10, 15 | Increases compressive strength, hardness and wear resistance Reduces creep |
| SiO2 | 5, 10, 15 | Increases hardness and wear resistance; Improve Dimensional Stability. |
| Glass beads | 5, 10, 15 | Reduces creep and cold flow; Lower density Increases hardness and wear resistance; |
| Others materials | PEEK(polyetheretherketone), PI(Polyimide), MoS2 are also ok | |
Other details:
1. Unit price: depends on the material and the detailed design
2. Quality certificate: ISO9001:2000
3. Customization is welcome
4. Produced by precise CNC machine
5. Customers samples and drawings are accepted
6. Available in various sized and colors
7. OEM service offered / ODM service offered
8. Our technical staff can help your design according to your wish
 |
|
Applications:
1. Construction and building industries: bridge, tunnel, steel structure house-support, large-scale chemical pipeline, supporting block of store
trough, the supporting pedestal of bridge and the bridge-span circumvolving system and so on.
2. medical treatment field: PTFE is the totally inert material, which has very strong biology applicability, has not any circadian side-effect to the
body. So it can be applied in surgical operation suture for the body parenchyma regeneration.
Competitive Advantage:
1. Low MOQ: It can meet your business very well
2. OEM accepted: Just provide drawing or sample
3. Good service: We treat clients as friends
4. Good quality: We have strict quality control system. Good reputation in the market
5. Quality Control: Approved by GB/T 19001-2008/ ISO9001:2008
6. Fast and cheap delivery: We have big discount from forwarder(Long Contract)

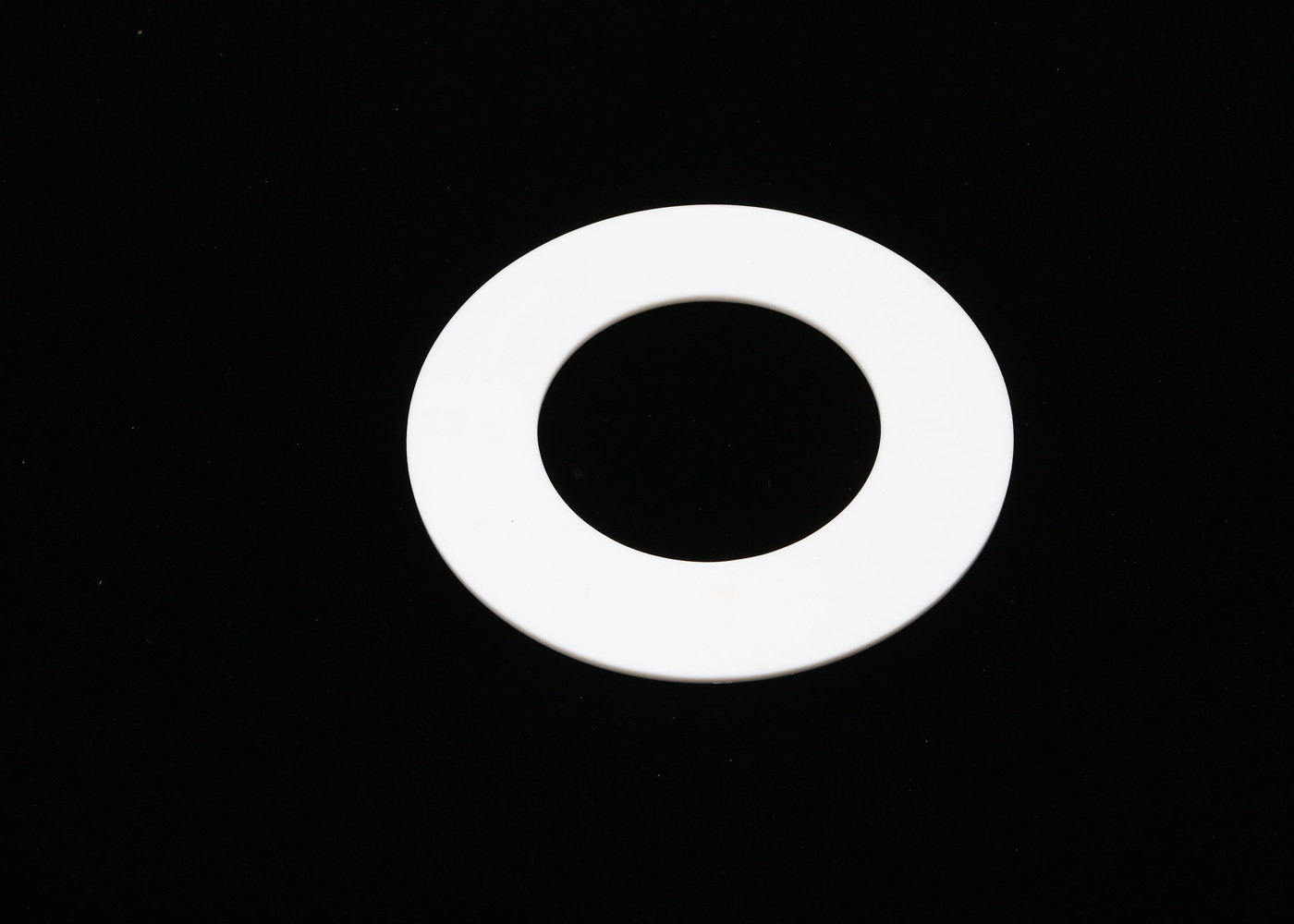

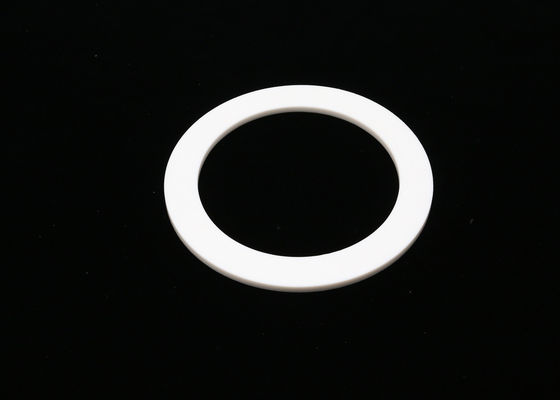

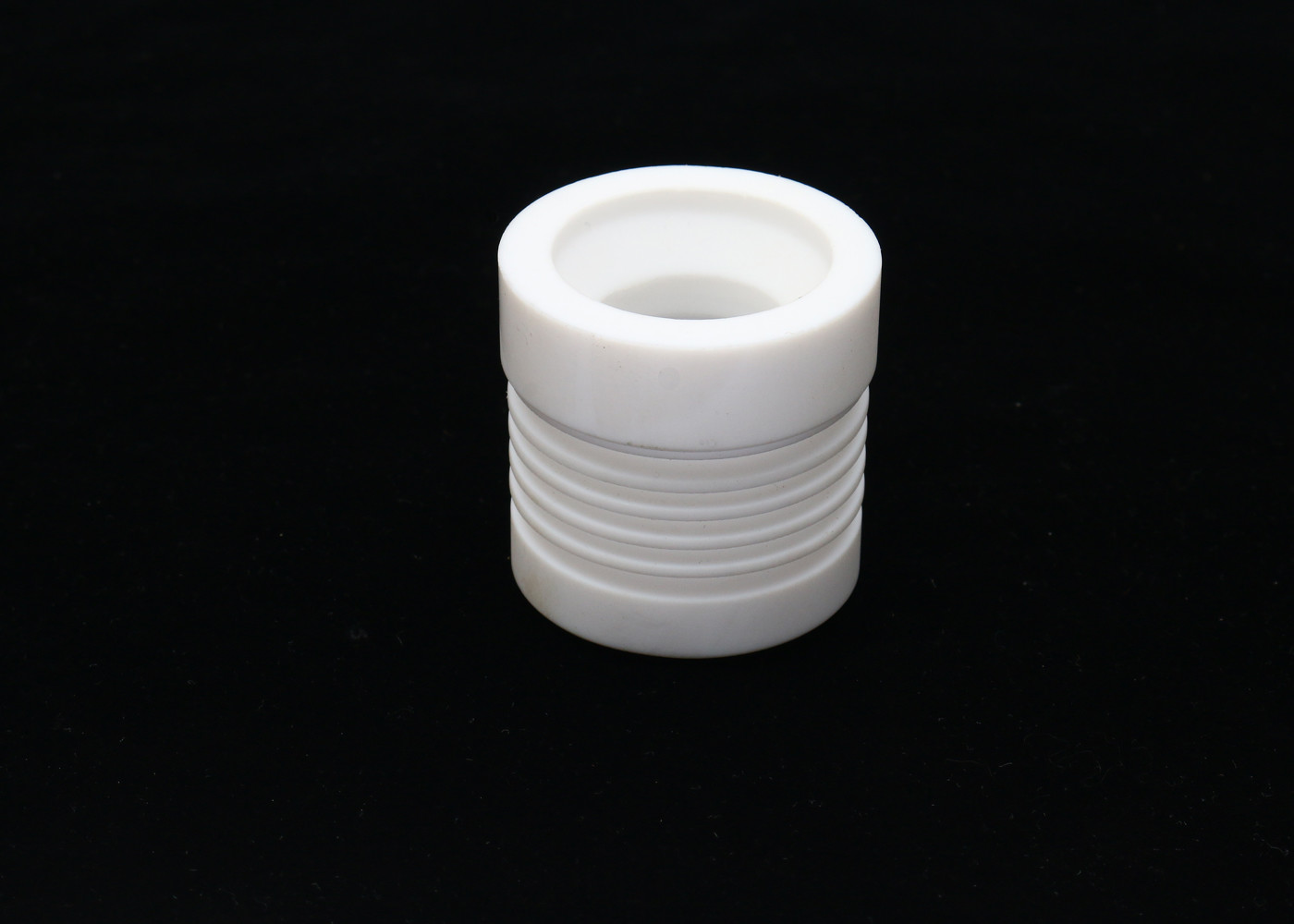

Picture show:
|
