소멸 기체 노를 카르보니트라이딩 7KN 스페이서 슬리브 로크웰B경도 60을 소결시킵니다
| 원래 장소 | 중국 |
|---|---|
| 브랜드 이름 | WEIWO |
| 인증 | ISO9001:2008 |
| 모델 번호 | OEM 온천 침전물 부속 |
| 최소 주문 수량 | 1000 PC |
| 가격 | negotiable |
| 포장 세부 사항 | 표준 수출 패키지 |
| 배달 시간 | 새로운 표본을 위한 30 작업 일 |
| 지불 조건 | 전신환, 웨스턴 유니온 |
| 공급 능력 | 달 당 50,000pcs |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
x제품 상세 정보
| 상품 이름 | 스페이서 슬리브 | 열처리 | 침탄질화 급냉 |
|---|---|---|---|
| 재료 | Fe - Ｃ - Cu 또는 합금분말 | 엔진 타입 | 휘발유 |
| 차원 | 맞춤화될 수 있습니다 | 처리 | 증기 |
| 견고성 | HRB60-80 | 샘플 | 유효한 무료 샘플 |
| 강조하다 | 7KN 샤프트 스페이서 슬리브,온천 침전물 샤프트 스페이서 슬리브,로크웰B경도 60 스페이서 슬리브 |
||
제품 설명
Crushing Strength 7KN Spacer Sleeve With Steam Treatment And Sinter Technology
Details:
Place of origin:Zhe Jiang, China
Material: iron powder metallurgy
Density:6.2-6.8g/cm3
Hardness:HRB70-90
Specifications:
|
item |
Powder Metallurgy |
|
Equipments |
Wax Model Injecting Machine, Shell Making Line, dewaxing Line, Heat Treatment Mesh Belt Furnace, Gas Furnace, Painting Line, etc. |
|
Drawing soft ware used |
UGPRO-ESOLIDWORKERS2010CAD etc |
|
Inspection equipment |
Tensile tester, Hardness tester, Metal Micro-structure, Coordinate measure, optical Spectrometer, impact tester, rough tester and so on |
|
Material |
Carbon steel, stainless steel, iron, copper, brass, aluminum |
|
Surface Finish |
Passivation, Zinc, nickel, chrome plate, black, Dacromet |
Description:
We manufacture various kinds of powder metallurgy parts such as bushing, bearing, gear, block, guide and other OEM structure sinter parts.
1. Bushing piston ring/PM piston shock absorber parts/sliding bearing
2. Shock absorber parts including bushing, PM piston, Rod guide etc.
Product Name
Spacer sleeve
Raw Materials: MPIF FC-0205
The process of the parts
1. Mould production (inspection)
2. Powder blending (inspection)
3. Compression (inspection)
4. Sintering (inspection)
5. Steam treatment (inspection)
6. Finishing machining (inspection)
7. Package
8. Shipment
Features
1. Density from 6.5-6.7 g/cm3
2. Hardness: HRB 60-100
3. Steam treatment: 2H high temp steam holding time, Thickness of Fe3O4: 0.004-0.005mm
4. Full line products for shock absorber, including powder metallurgy piston, rod guide, foot valve, PTFE band for piston, Du bearing for rod guide.
5. PPAP III is submitted accordingly.
Production process:
1, Material
2, IQC
3, Mixing
4, Compacting
5, Sintering
6, Post Treatment
7, QC
8, package and delivery
Applications:
1. Automotive Part
2. Motorcycle Part
3. Pump Parts
4. Locomotive Parts
5. Machinery Parts
6. Tool Parts
Competitive Advantage:
High quality guarantee:
(1) Electronic balance ensure density
(2) Test equipments to ensure crushing strength
(3) QC an PQC to ensure close tolerance and accurate dimension
Design ability:
Develop different models of gear, bearing, bushing, structural parts etc. can produce according to drawings or samples.

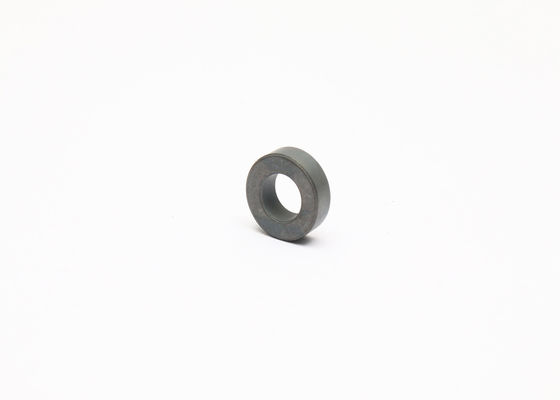

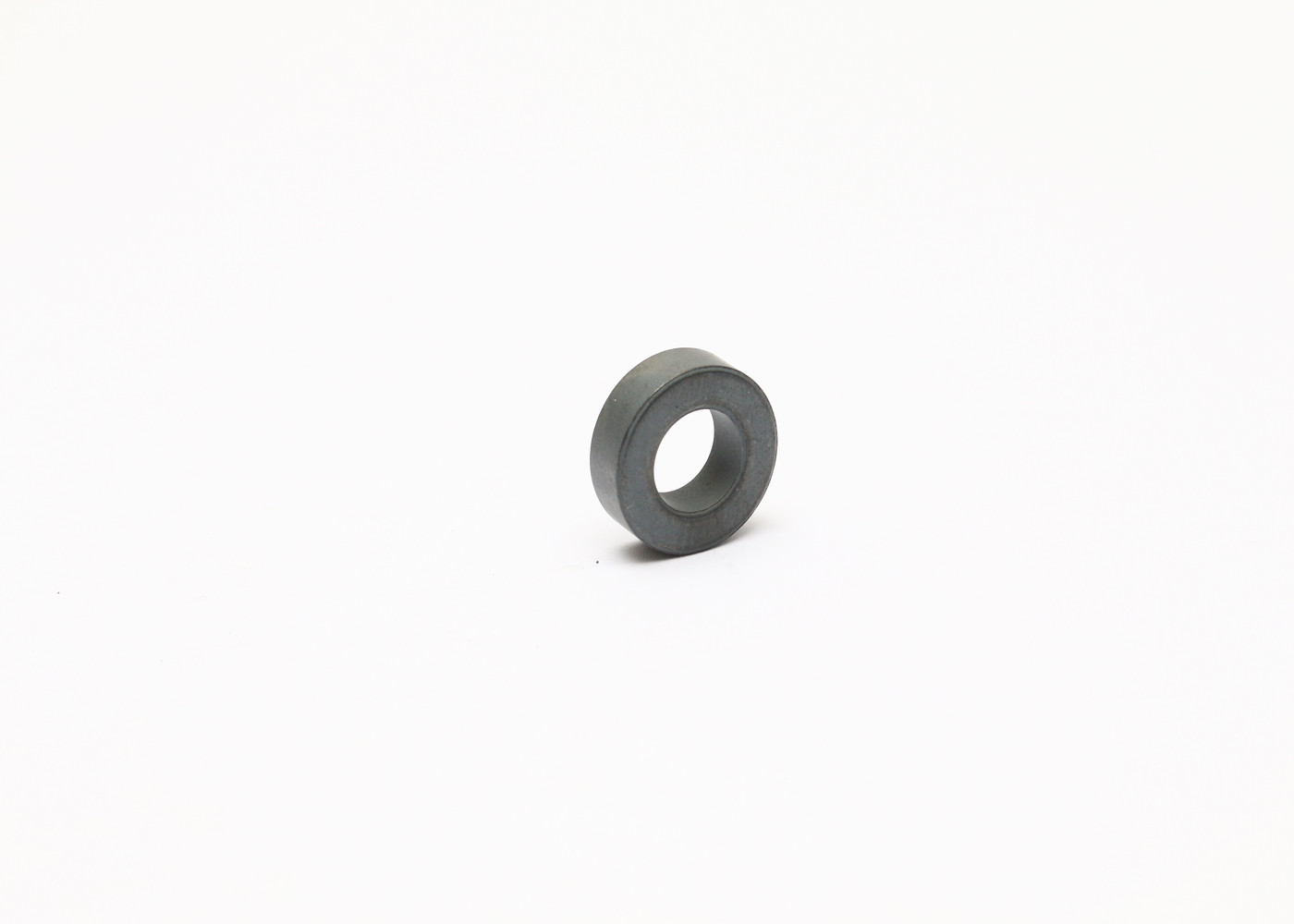

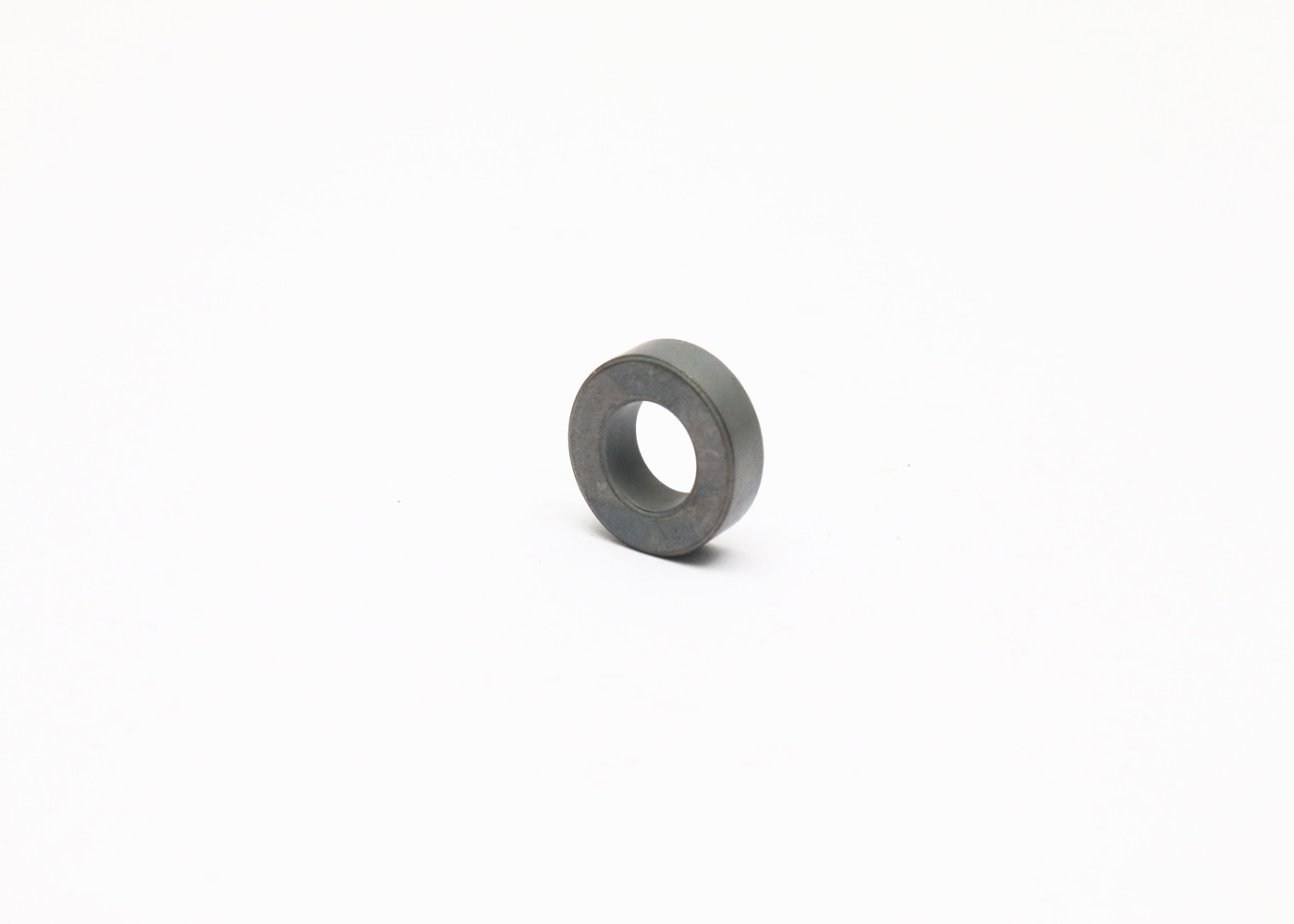

Picture show:
 |
